SPB1
Regular price
4,17 €
Regular price
Sale price
4,17 €
°C
Product description
- KL = 1.5 m
- passive
- Pipe clamp in stainless steel V4A (1.4571), Ø = 6 mm, L = 50 mm

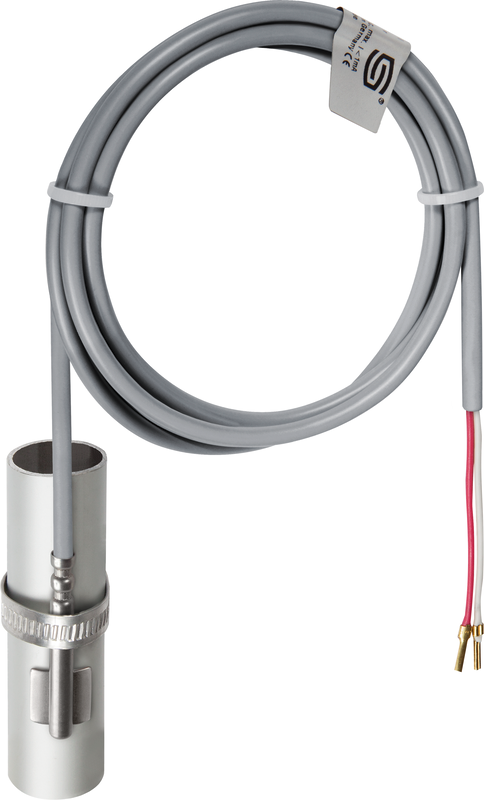

THERMASGARD® ALTF 1 contact sensors are electrical contact thermometers that are used to measure the surface temperature of solid bodies and have at least one so-called contact surface or contact area that is brought into contact with the surface to be measured.
The contact temperature sensor ALTF 1 with connection cable and passive output determines the temperature of the medium flowing in the pipe (e.g. the water temperature) via the surface temperature. The ALTF 1 is a pipe contact resistance thermometer with clamping band and axial sensor tube for temperature measurement on pipes (e.g. cold and hot water) or on heating pipes for heating control.
The contact temperature sensor ALTF 1 with connection cable and passive output determines the temperature of the medium flowing in the pipe (e.g. the water temperature) via the surface temperature. The ALTF 1 is a pipe contact resistance thermometer with clamping band and axial sensor tube for temperature measurement on pipes (e.g. cold and hot water) or on heating pipes for heating control.
Technical data
| Sensor | NTC 20K |
| Function type | Measuring temperature |
| Measured variable | Temperature, passive temperature |
| Cable length | 1.5 m |
| Display | No |
| IP protection rating | IP65 |
| Output variant | Cable with ferrule end sleeves |
| Measuring range | -35...+105 °C PVC -35...+180 °C Silicone (Tmax NTC = +150 °C, Tmax LM 235 Z = +125 °C) |
| Cable material | LiYY (PVC) |
