Contact thermostats
-
°CTHERMASREG® ALTR-060
1102-1040-1100-300
- Temperature controller (external setting)
- 0...+60 °C / +32...+140 °F
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load): 16 (4) A; 24...250 V ACat 24 V AC min. 150 mA
- Switching differential: 8K (± 1K)
- Sensor element: Bimetal
- Process connection: by means of 220 mm tension spring, made of metal (included in the scope of delivery)
- IP40
34,11 €
incl. VAT 40,57 €
-
°CTHERMASREG® ALTR-060 U
1102-1040-2100-300
- Temperature monitor (internal setting)
- 0...+60 °C / +32...+140 °F
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load): 16 (4) A; 24...250 V ACat 24 V AC min. 150 mA
- Switching differential: 8K (± 1K)
- Sensor element: Bimetal
- Process connection: by means of 220 mm tension spring, made of metal (included in the scope of delivery)
- IP40
34,11 €
incl. VAT 40,57 €
-

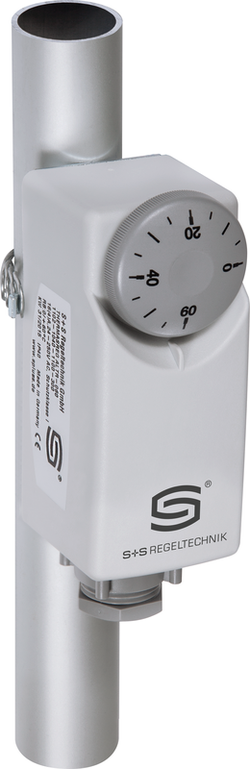

°CTHERMASREG® ALTR-090
1102-1040-1100-400
- Temperature controller (external setting)
- 0 ... 90 °C
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load): 16 (4) A; 24...250 V ACat 24 V AC min. 150 mA
- Switching differential: 8K (± 1K)
- Sensor element: Bimetal
- Process connection: by means of 220 mm tension spring, made of metal (included in the scope of delivery)
- IP40
34,11 €
incl. VAT 40,57 €
-

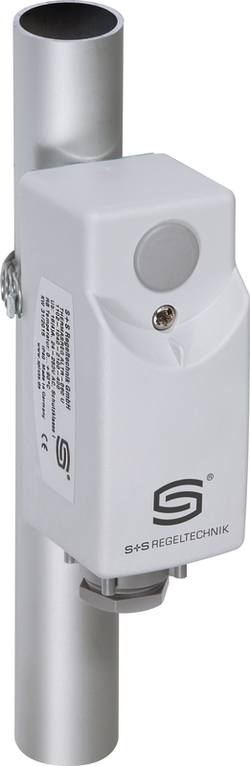

°CTHERMASREG® ALTR-090 U
1102-1040-2100-400
- Temperature monitor (internal setting)
- 0 ... 90 °C
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load): 16 (4) A; 24...250 V ACat 24 V AC min. 150 mA
- Switching differential: 8K (± 1K)
- Sensor element: Bimetal
- Process connection: by means of 220 mm tension spring, made of metal (included in the scope of delivery)
- IP40
34,11 €
incl. VAT 40,57 €
-
°CTHERMASREG® ALTR-1
1102-1030-1100-100
- Temperature controller (external setting)
- -35...+35 °C / -31...-95 °F
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load): 24 ... 250 V AC + 10 %, 16 A, cos ϕ = 1.024 ... 250 V AC + 10 %, 1.5 A, cos ϕ = 0.6 at 24 V AC min. 150 mA
- Switching differential: 5K (± 1K)
- Endless tension in the metal turnbuckle (included in the scope of delivery)
- IP65
107,85 €
incl. VAT 128,18 €
-

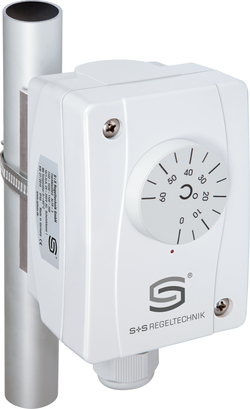

°CTHERMASREG® ALTR-3
1102-1030-1100-300
- Temperature controller (external setting)
- 0...+60 °C / +32...+140 °F
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load): 24 ... 250 V AC + 10 %, 16 A, cos ϕ = 1.024 ... 250 V AC + 10 %, 1.5 A, cos ϕ = 0.6 at 24 V AC min. 150 mA
- Switching differential: 5K (± 1K)
- Endless tension in the metal turnbuckle (included in the scope of delivery)
- IP65
107,85 €
incl. VAT 128,18 €
-
°CTHERMASREG® ALTR-5
1102-1030-1100-400
- Temperature controller (external setting)
- 0 ... 90 °C
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load): 24 ... 250 V AC + 10 %, 16 A, cos ϕ = 1.024 ... 250 V AC + 10 %, 1.5 A, cos ϕ = 0.6 at 24 V AC min. 150 mA
- Switching differential: 5K (± 1K)
- Endless tension in the metal turnbuckle (included in the scope of delivery)
- IP65
107,85 €
incl. VAT 128,18 €
-
°CTHERMASREG® ALTR-7
1102-1030-1100-500
- Temperature controller (external setting)
- 0...120 °C / +32...+248 °F
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load): 24 ... 250 V AC + 10 %, 16 A, cos ϕ = 1.024 ... 250 V AC + 10 %, 1.5 A, cos ϕ = 0.6 at 24 V AC min. 150 mA
- Switching differential: 5K (± 1K)
- Endless tension in the metal turnbuckle (included in the scope of delivery)
- IP65
107,85 €
incl. VAT 128,18 €
-
°CTHERMASREG® ALTR-1 U
1102-1030-2100-100
- Temperature monitor (internal setting)
- -35...+35 °C / -31...-95 °F
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load): 24 ... 250 V AC + 10 %, 16 A, cos ϕ = 1.024 ... 250 V AC + 10 %, 1.5 A, cos ϕ = 0.6 at 24 V AC min. 150 mA
- Switching differential: 5K (± 1K)
- Endless tension in the metal turnbuckle (included in the scope of delivery)
- IP65
118,53 €
incl. VAT 140,95 €
-

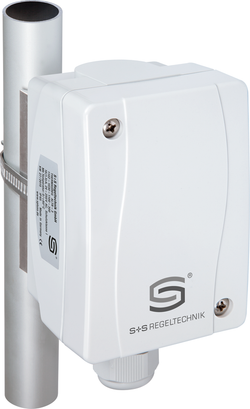

°CTHERMASREG® ALTR-3 U
1102-1030-2100-300
- Temperature monitor (internal setting)
- 0...+60 °C / +32...+140 °F
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load): 24 ... 250 V AC + 10 %, 16 A, cos ϕ = 1.024 ... 250 V AC + 10 %, 1.5 A, cos ϕ = 0.6 at 24 V AC min. 150 mA
- Switching differential: 5K (± 1K)
- Endless tension in the metal turnbuckle (included in the scope of delivery)
- IP65
118,53 €
incl. VAT 140,95 €
-
°CTHERMASREG® ALTR-5 U
1102-1030-2100-400
- Temperature monitor (internal setting)
- 0 ... 90 °C
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load): 24 ... 250 V AC + 10 %, 16 A, cos ϕ = 1.024 ... 250 V AC + 10 %, 1.5 A, cos ϕ = 0.6 at 24 V AC min. 150 mA
- Switching differential: 5K (± 1K)
- Endless tension in the metal turnbuckle (included in the scope of delivery)
- IP65
118,53 €
incl. VAT 140,95 €
-
°CTHERMASREG® ALTR-7 U
1102-1030-2100-500
- Temperature monitor (internal setting)
- 0...120 °C / +32...+248 °F
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load): 24 ... 250 V AC + 10 %, 16 A, cos ϕ = 1.024 ... 250 V AC + 10 %, 1.5 A, cos ϕ = 0.6 at 24 V AC min. 150 mA
- Switching differential: 5K (± 1K)
- Endless tension in the metal turnbuckle (included in the scope of delivery)
- IP65
118,53 €
incl. VAT 140,95 €
