Sleeve sensor with temperature transducer THERMASGARD® HFTM-ECATP LCD

SKU 2001-2162-9100-001 EAN 4 251325 623849 Product group: WG02
In stock , available in 1-3 working days
plus 19% VAT., plus. shipping
incl. VAT 510,79 €
Regular price 429,28 €
Regular price Sale price 429,28 €

Product description

  • -50...+150 °C / -58...+302°F; Tmax up to +150 °C / -58...-302 °F
  • typically ± 0.2 K at +25 °C
  • Temperature [°C]
  • EtherCAT P
  • IP54

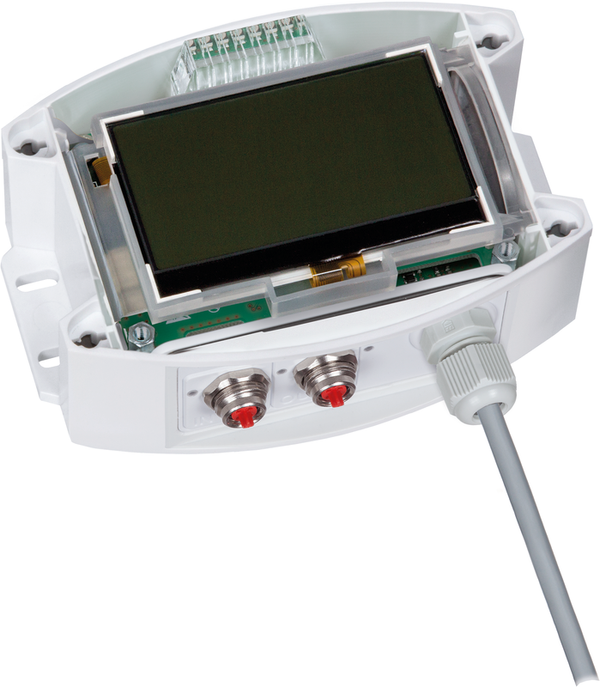

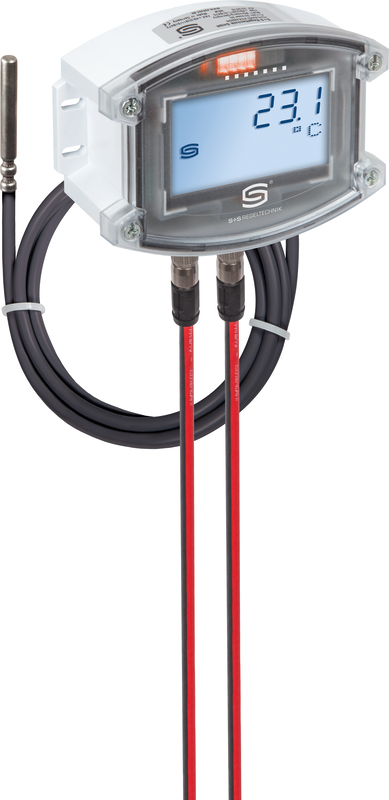

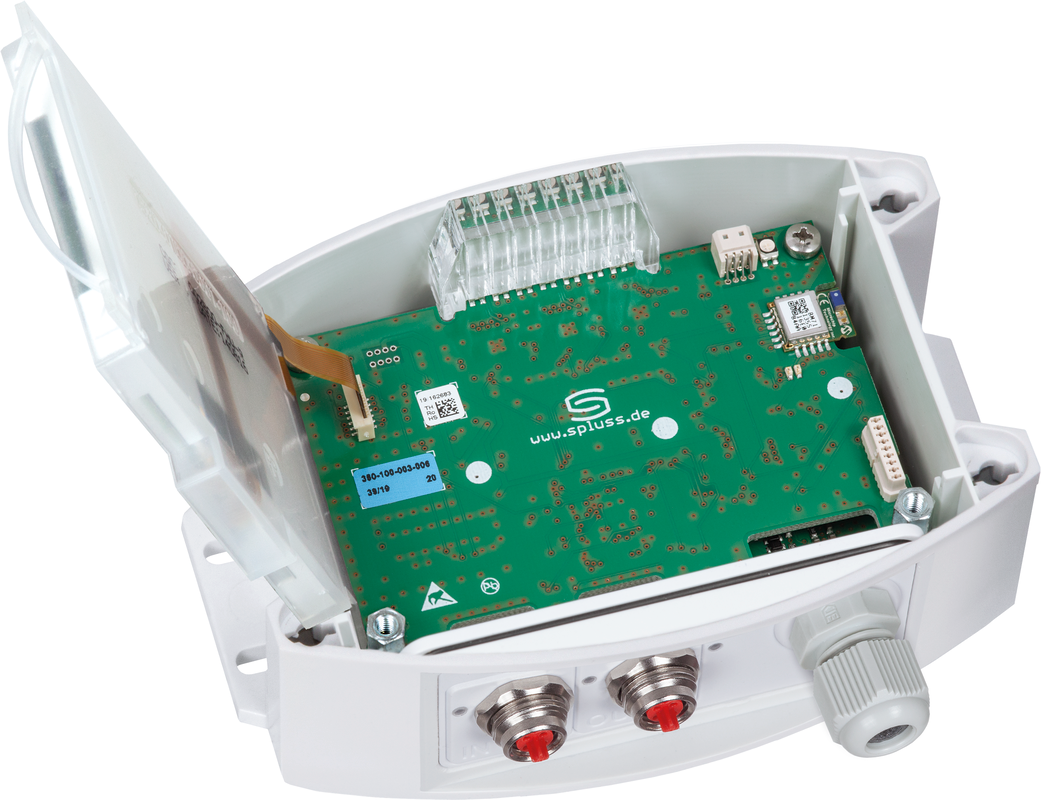

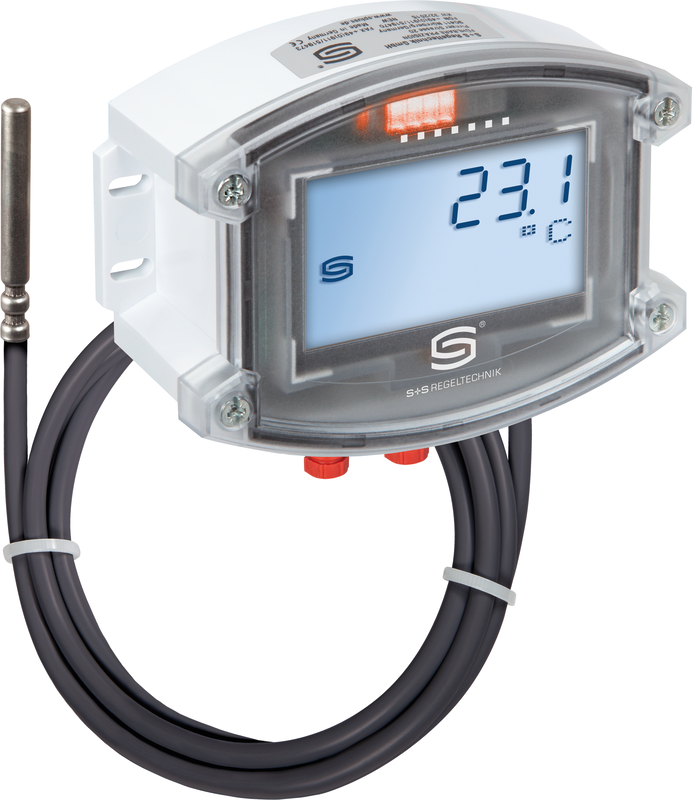

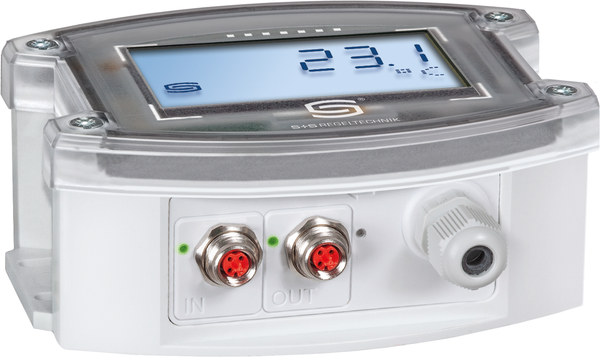

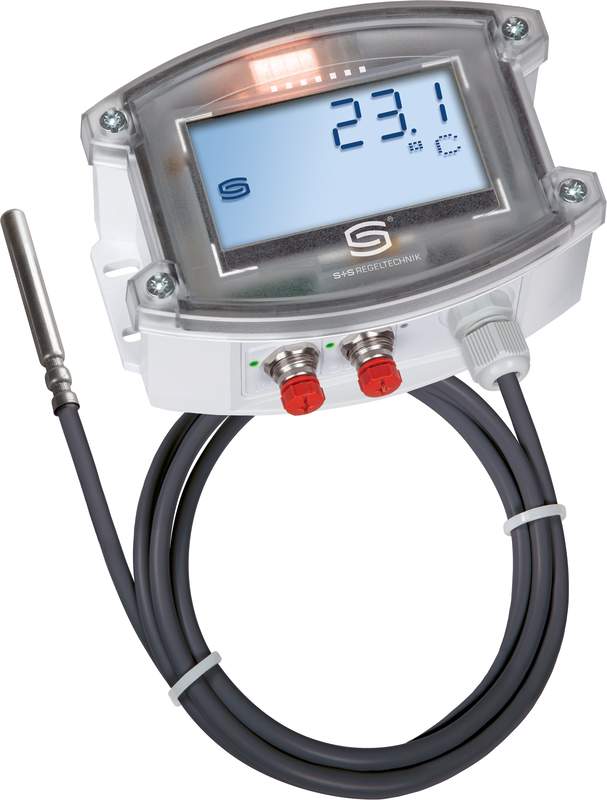

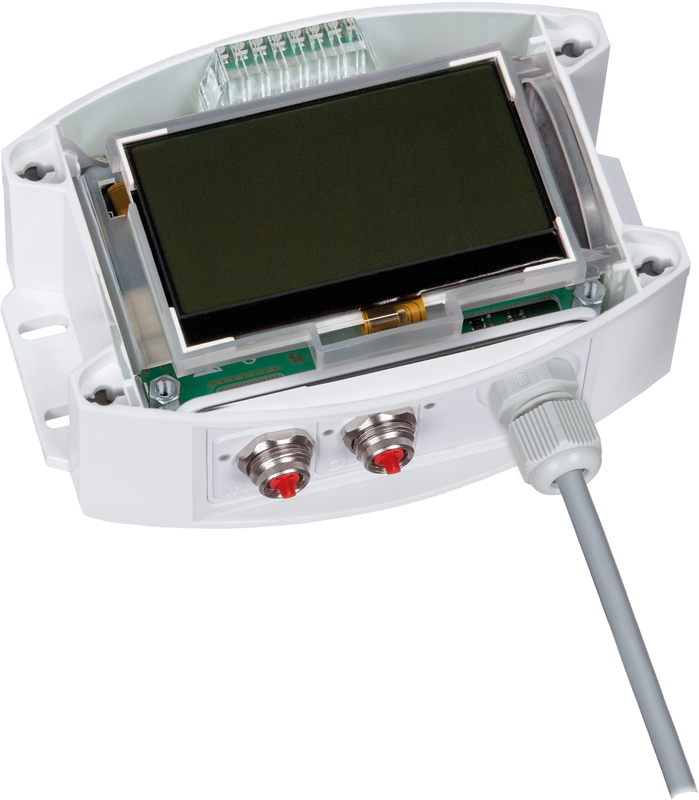

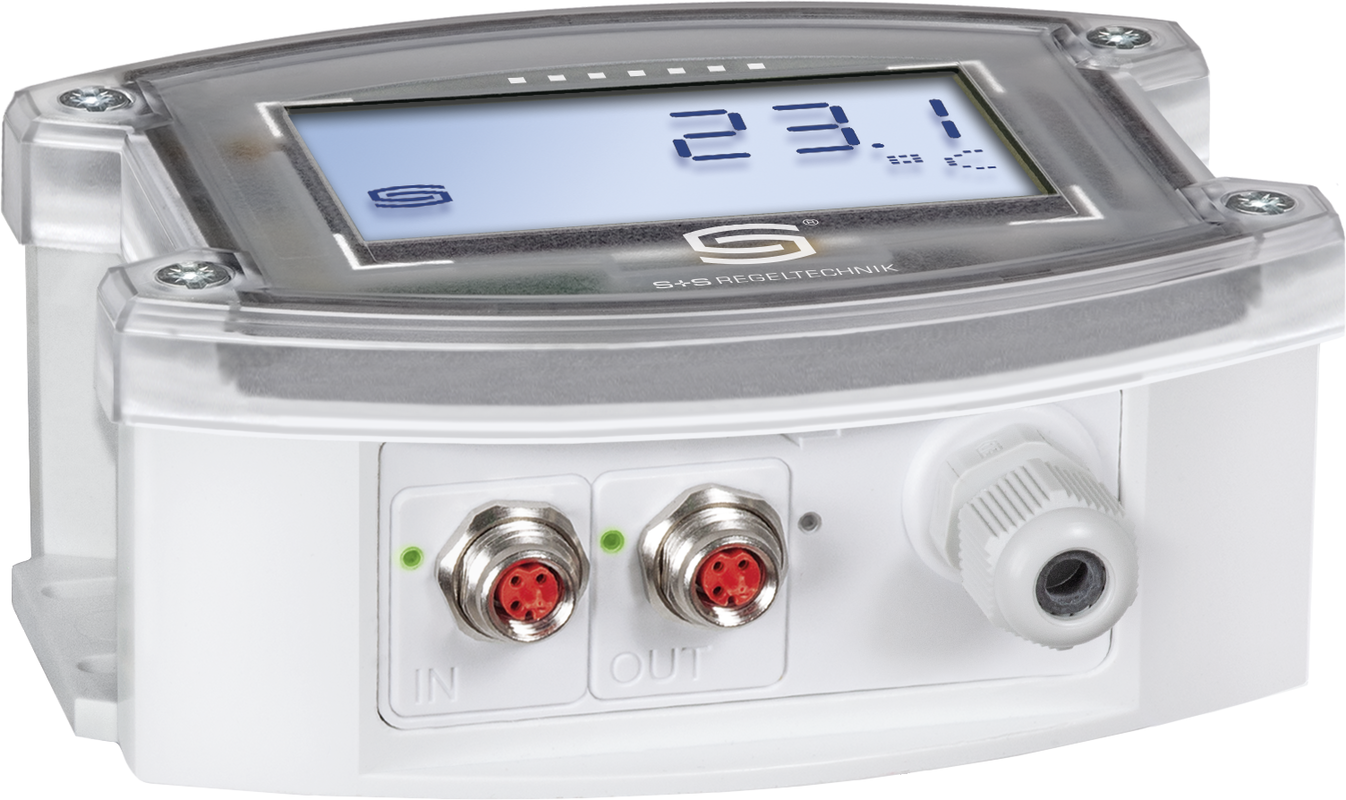

Networkable sleeve temperature transmitter THERMASGARD® HFTM - EtherCAT P with M8 plug connector (EtherCATP-coded), Bluetooth-capable, in impact-resistant plastic housing with quick-release screws, optionally with/without display and bar graph, cable sensor with stainless steel sleeve.

The sleeve sensor is used to measure the temperature in liquid and gaseous media. It can be used as a duct sensor or installed in an immersion sleeve THE (accessory) as an immersion and screw-in sensor in liquids. The sensor is calibrated at the factory.

EtherCAT P-capable measuring transducer for industrial requirements with maximum reliability: with simple integration into the PLC level via the ESI configuration file of the device, with diagnostic options (such as communication error counter), extended setting options, retrievable historical data (min/max) and maintenance interval determination of the sensor. Optionally with large illuminated display (three lines, individually programmable in the 7-segment and dot-matrix area) and bargraph (seven digits, LEDs freely configurable) for graphical representation, e.g. as a traffic light display.
