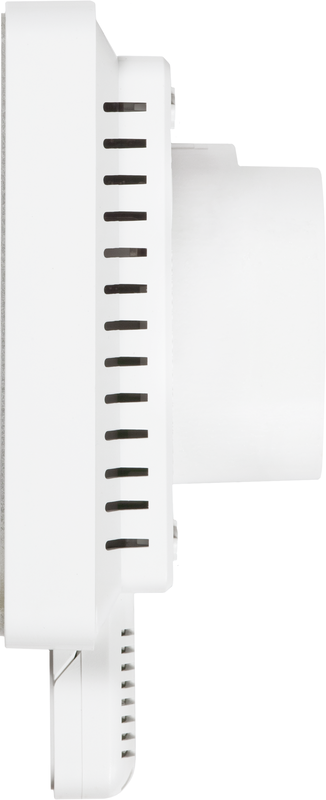

Room controller (controller) RYMASKON® RYM 1431C-RH-CO2-MOD

The room controllers of the Rymaskon® 1000 series are designed to control (up to 2 HVAC zones) in residential, hotel, and office rooms and individually regulate the indoor heating, cooling, and fan stages. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM, or 2-/3-point control. The product family stands out with its elegant design, intuitive operation, and the wide range of combination possibilities of the individual components.
The room controllers Rymaskon® 1000 C (controllers) are used for controlling and regulating heating fan coils and fan coil units (fan coils). Depending on the type variant, the devices are available with analog outputs (0 -10 V) as well as with digital-/relay outputs for controlling heating valves, cooling valves, 6-way valves, step-controlled fans, or EC fans. Control is performed via PI, PWM, or 2-/3-point control. With the changeover function, 2- and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus allows the HVAC parameters to be changed and monitored on the controller at any time via the BMS. In addition, the functions solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. Visual indication is provided via a 2" TFT display; operation is via capacitive keys (touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are optionally available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. For example, a window contact or a condensation monitor can be connected. This ensures all options are available to flexibly and individually climate-control the rooms.
All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in white or black. Wall mounting is performed on standard flush-mounting boxes.
