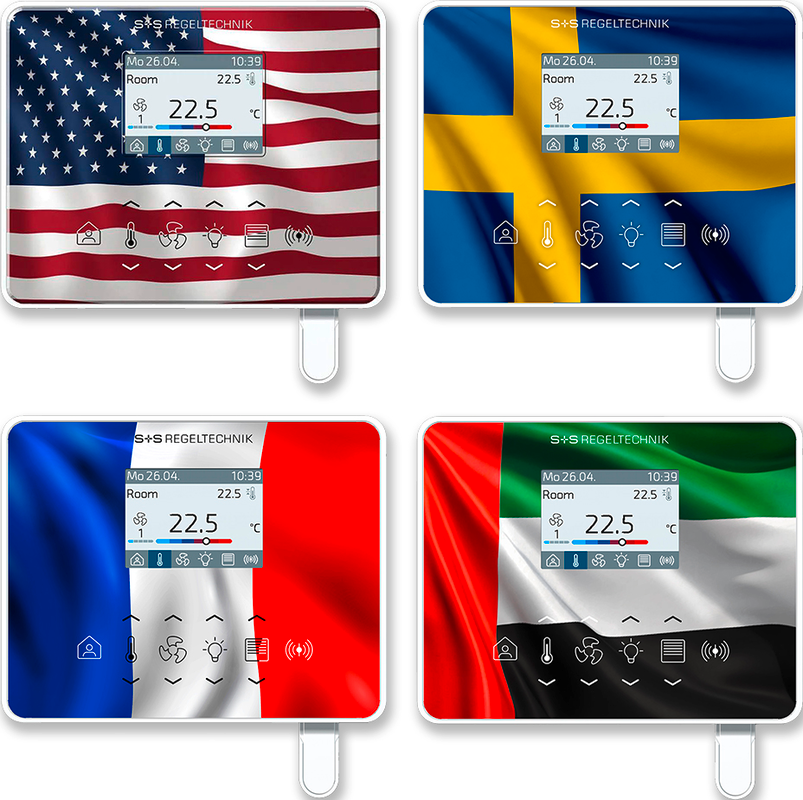

WIRELESS room operating unit (interface) RYMASKON® RYM 1401-RH-VOC-WMOD

Room controllers of the Rymaskon® 1000 series are designed for controlling (up to 2 climate zones) in residential, hotel and office rooms, and individually regulate the indoor heating, cooling and fan stages. The controller variants can be operated as stand-alone devices thanks to the integrated control functions PI, PWM or 2-/3-point control. The product family stands out for its elegant design, intuitive operation and the versatile combination options of the individual components.

The room controllers Rymaskon® 1000 (interface) are used to control temperature, fan, solar shading (retractable awnings/roller shutters) or lighting (with dimming function). The room controllers provide setpoints either via conventionally wired Modbus or via the wireless, radio-based W-Modbus of the BMS. The optical display is provided by a 2" TFT display, and operation is via capacitive keys (touchkeys).
In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input is available for a passive temperature sensor (NTC10K) and an input for a potential-free contact. This makes it possible, for example, to connect a window contact or a condensation monitor. As a result, all options are available to climate rooms flexibly and individually.
All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is on standard flush-mounted back boxes or surface-mounted boxes.
