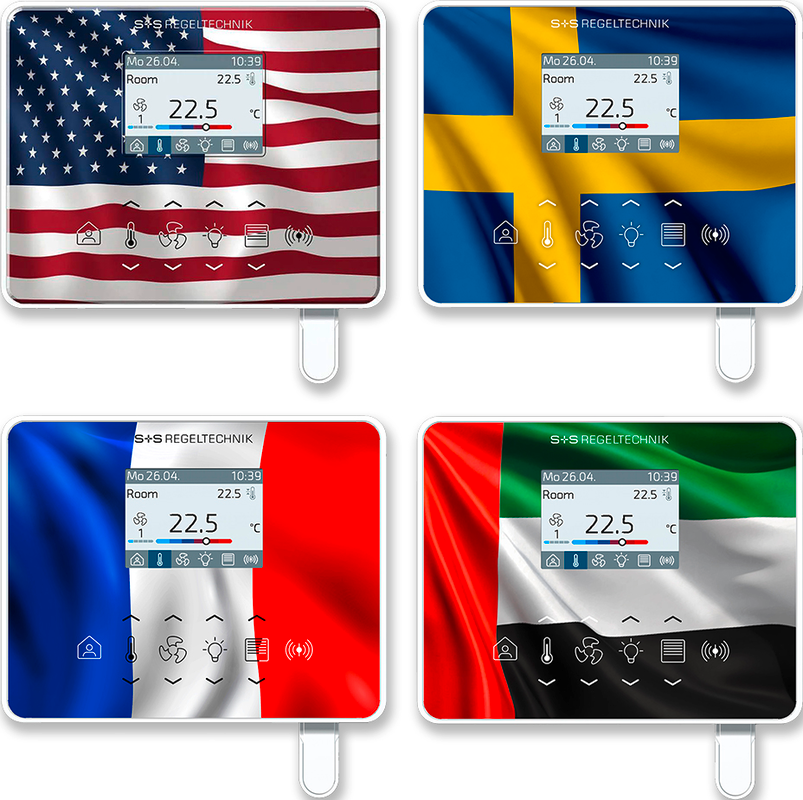

Room operating unit (interface) RYMASKON® RYM 1302-RH-CO2-MOD-AP-LL

The room controller units of the Rymaskon® 1000 series are designed to control (up to 2 HVAC zones) residential, hotel, and office rooms, and they individually regulate the heating, cooling, and fan stages of the interior. The controller variants can be operated as stand-alone units using the integrated control functions PI, PWM, or 2-/3-point control. The product family stands out for its refined design, intuitive operation, and the wide range of combination options of the individual components.

The room controller units Rymaskon® 1000 (interface) are used to control temperature, fan operation, solar shading (roller shutters, blinds), or lighting (with dimming function). The room controller units provide the setpoints either via conventionally wired Modbus or via the wireless, radio-based W-Modbus of the BMS/GLT. Visual indication is provided via a 2" TFT display, and operation is via capacitive keys (Touchkeys).
In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This makes it possible, for example, to connect a window contact or a condensation monitor. This ensures that all options are available to flexibly and individually condition rooms.
All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is possible on standard flush-mounting back boxes or surface-mounted boxes.
