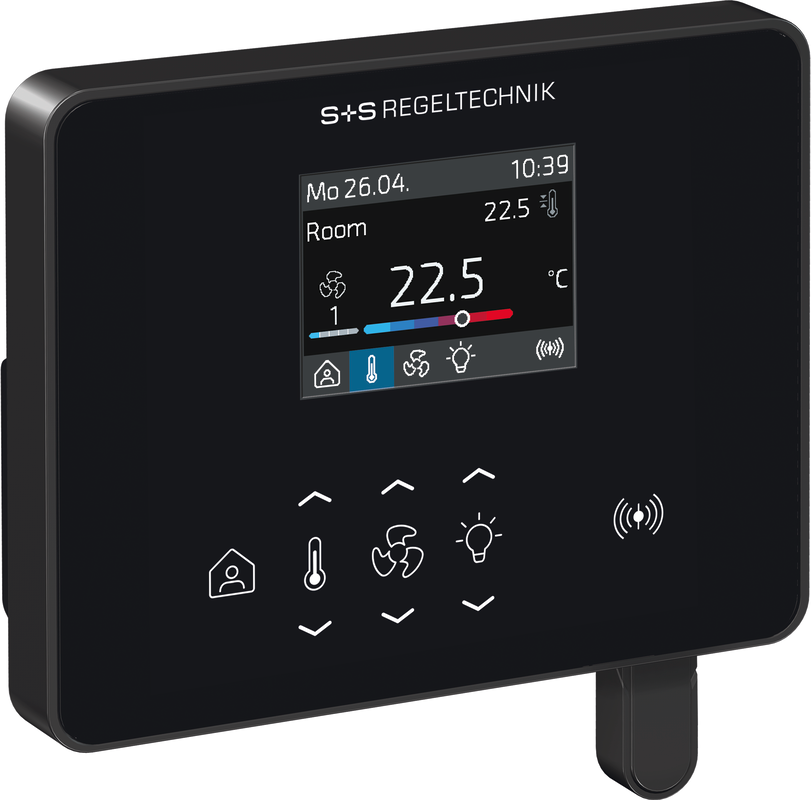

Room controllers (controller) RYMASKON® RYM 1462C-RH-VOC-MOD-L

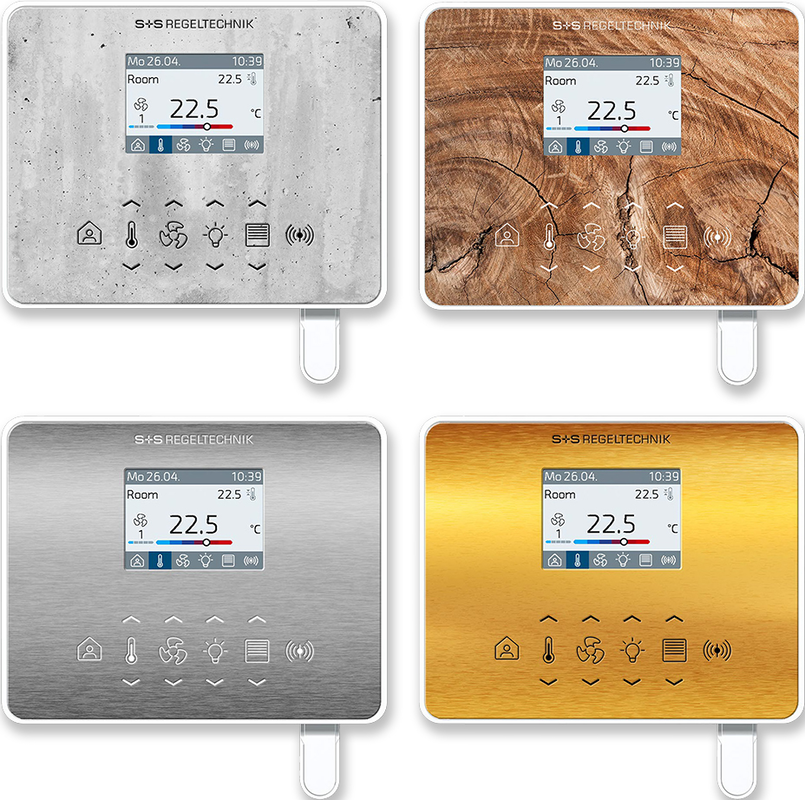

The room control units of the series Rymaskon® 1000 are designed to control (up to 2 HVAC zones) in residential, hotel and office rooms and individually regulate the heating, cooling and fan stages of the interior. The controller variants can be operated as stand-alone devices via the integrated control functions PI, PWM or 2-/3-point control. The product family is distinguished by its elegant design, intuitive operation and the many combination options of the individual components.
The room control units Rymaskon® 1000 C (controller) are used for controlling and regulating heating fan convectors and blower convectors (fan coil). Depending on the type variant, the devices are available with analog outputs (0 -10 V) as well as with digital / relay outputs, for controlling heating valves, cooling valves, 6-way valves, stepped fans or EC fans. Control is carried out via PI, PWM or 2-/3-point control. With the changeover function, 2-pipe and 4-pipe systems can be operated.

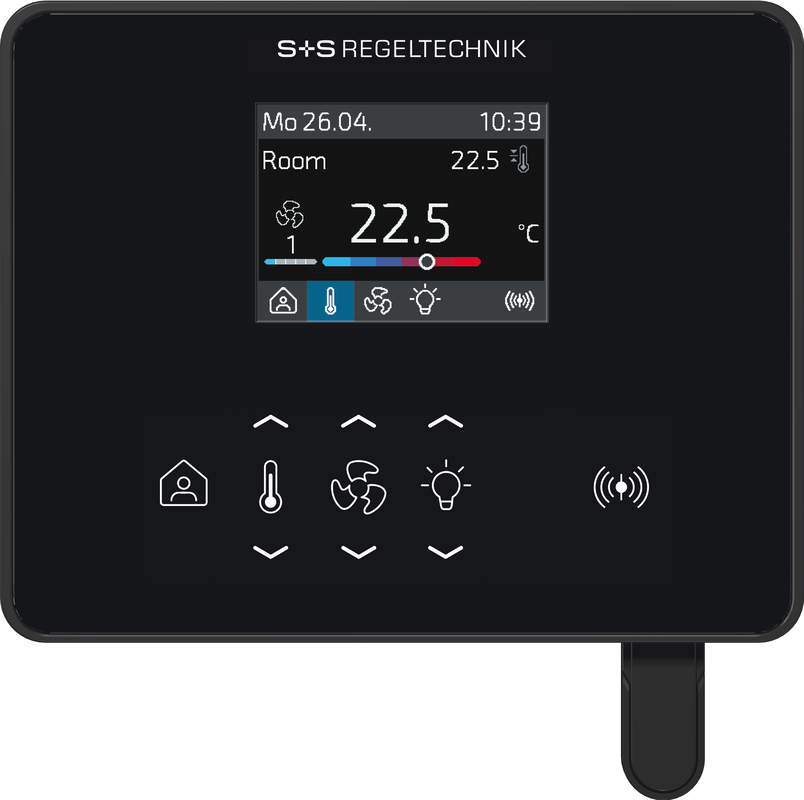

The Modbus communication interface or W-Modbus allows the HVAC parameters to be changed and monitored on the controller at any time via the BMS. In addition, the functions for solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical display is provided via a 2" TFT display, and operation via capacitive buttons (touchkeys).

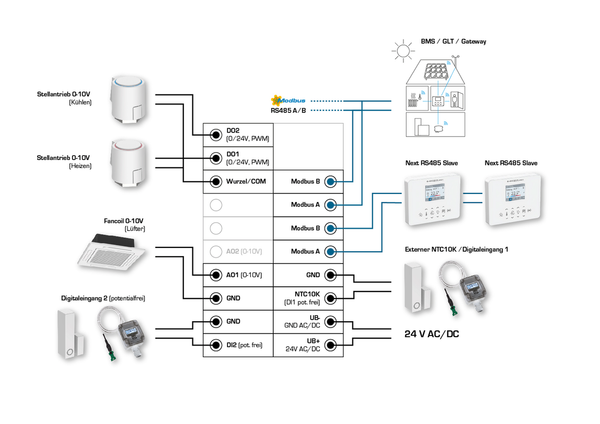

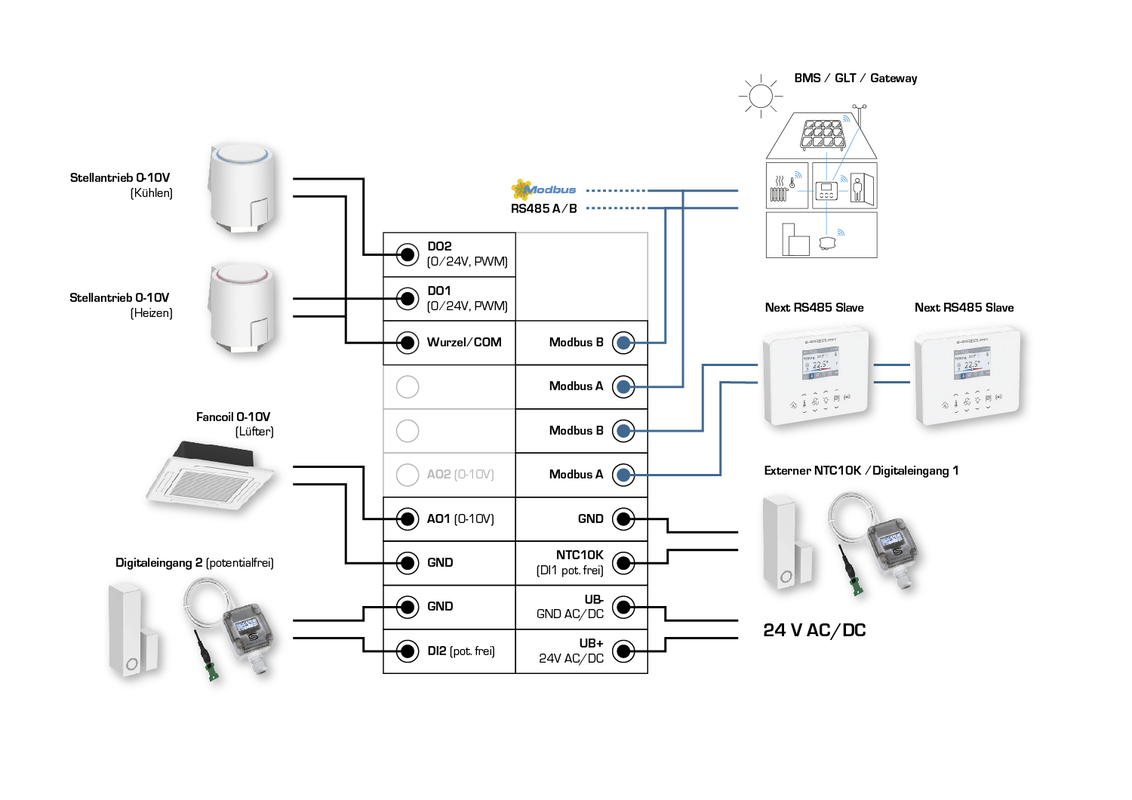

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available as options. Furthermore, an input is available for a passive temperature sensor (NTC10K) and an input for a potential-free contact. This makes it possible, for example, to connect a window contact or a condensation monitor. This ensures that all options are available to climatize rooms flexibly and individually.

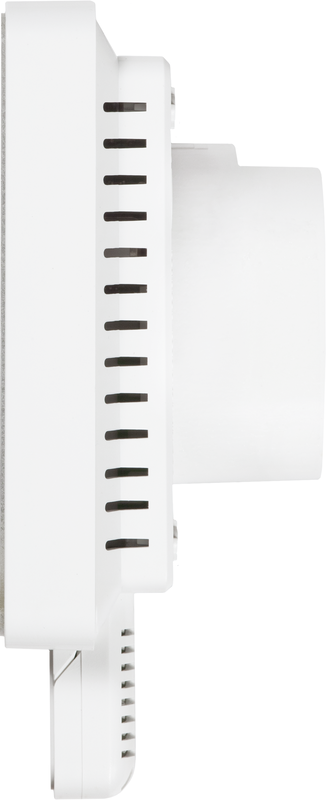

All device types are available in the timeless enclosure Iduna 3 (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is done on standard flush-mounting boxes.
