WIRELESS room controller (controller) RYMASKON® RYM 1462C-RH-CO2-VOC-WMOD-L

The room control devices of the Rymaskon® 1000 series are designed to control (up to 2 HVAC zones) in residential, hotel, and office rooms and individually regulate the heating, cooling, and fan stages of the indoor space. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM, or 2-/3-point control. The product family is characterized by its elegant design, intuitive operation, and the many combination options of the individual components.
The room control devices Rymaskon® 1000 C (controller) are used for controlling and regulating heating fan coils and fan coil units (fancoil). Depending on the type variant, the devices are available with analog outputs (0 -10 V) and with digital / relay outputs for controlling heating valves, cooling valves, 6-way valves, step-controlled fans, or EC fans. The control is carried out using PI, PWM, or 2-/3-point control. With the changeover function, 2- and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables, at any time, the modification and monitoring of the climate parameters on the controller via the BMS (GLT). In addition, the functions solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical indication is provided via a 2" TFT display, and operation is via capacitive keys (touchkeys).

In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This allows, for example, a window contact or a condensation monitor to be connected. This means all options are available to climate the rooms flexibly and individually.

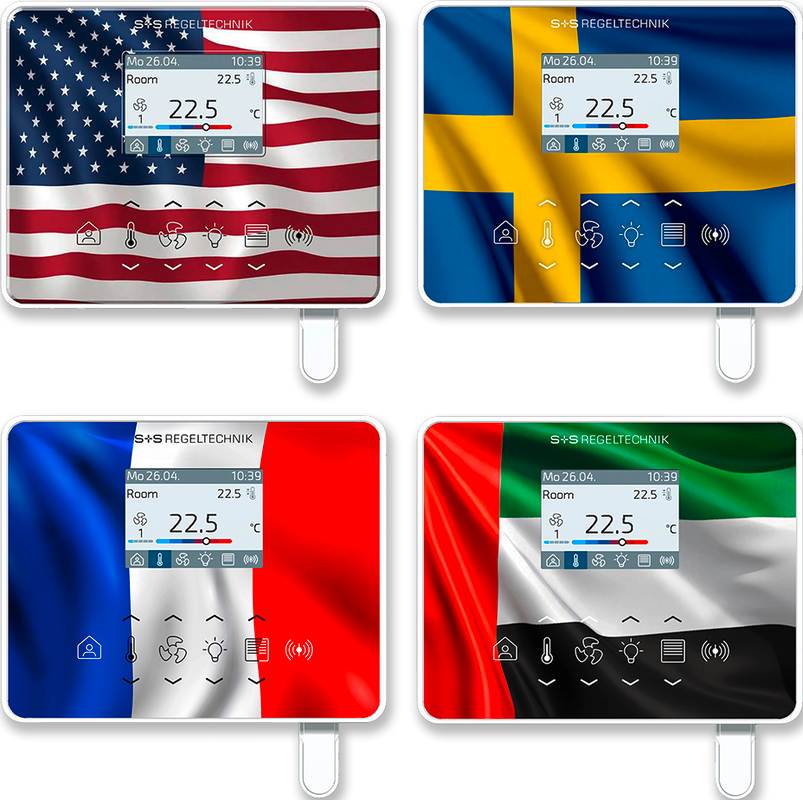

All device types are available in the timeless housing Iduna 3 (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is performed on standard flush-mount back boxes.
