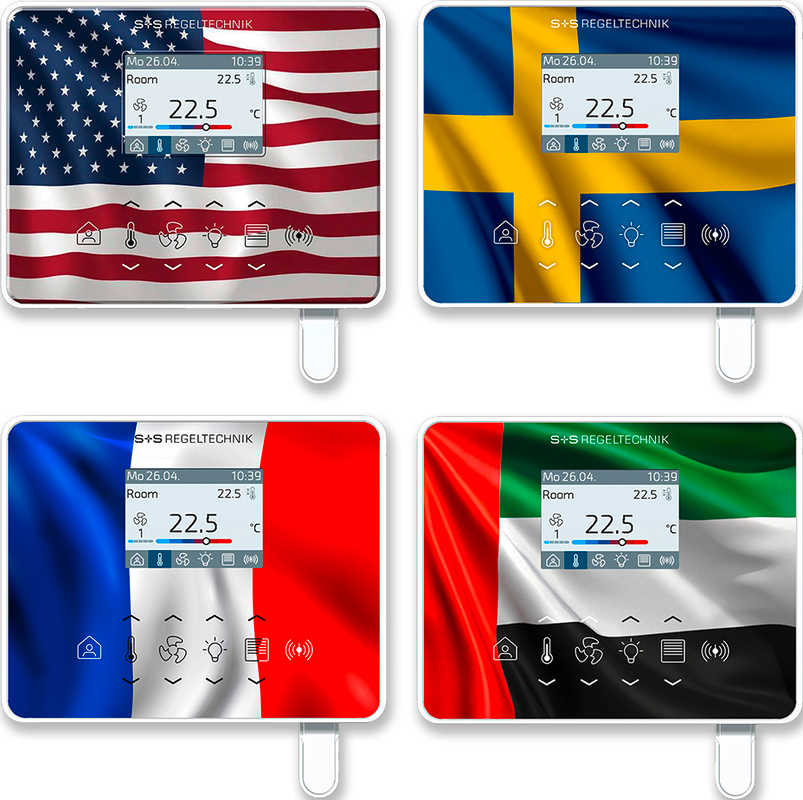

Room Controllers RYMASKON® RYM 1461C-RH-VOC-MOD-B

The room control devices of the Rymaskon® 1000 series are designed to control (up to 2 HVAC zones) in residential, hotel and office rooms and individually regulate the heating, cooling and fan stages of the interior space. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by its refined design, intuitive operation and the wide range of combination options of the individual components.
The room control devices Rymaskon® 1000 C (controller) are used for controlling and regulating heating fan convectors and fan coil units (fan coils). Depending on the type variant, the devices are available with analog outputs (0 -10 V) as well as with digital / relay outputs for controlling heating valves, cooling valves, 6-way valves, step-controlled fans or EC fans. Control is performed via PI, PWM or 2-/3-point control. With the changeover function, 2- and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables the control and monitoring of climate parameters on the controller at any time via the BMS. In addition, sun protection functions (roller shutters, blinds) or lighting (with dimming function) can be controlled over the bus. The optical display is provided via a 2" TFT display, and operation is via capacitive buttons (touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are optionally available. Furthermore, an input is provided for a passive temperature sensor (NTC10K) and an input for a potential-free contact. This makes it possible, for example, to connect a window contact or a condensation monitor. This ensures all options are available to flexibly and individually climate-control the rooms.
All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in the colors White or Black. Wall mounting is carried out on standard flush-mounting boxes.
