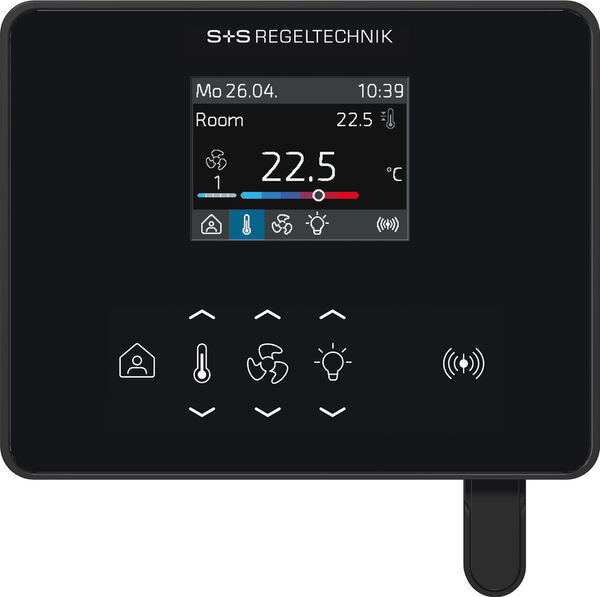

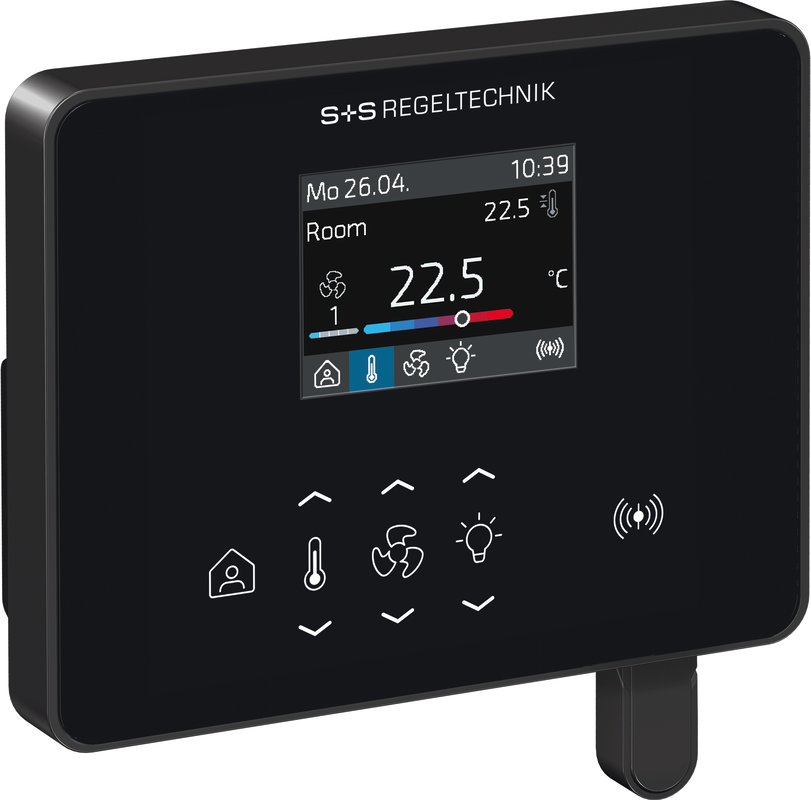

WIRELESS room controller (controller) RYMASKON® RYM 1432C-RH-CO2-WMOD-L

The room control devices of the Rymaskon® 1000 series are designed to control (up to 2 HVAC zones) in residential, hotel and office rooms and individually regulate the heating, cooling and fan stages of the interior space. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by its refined design, intuitive operation, and the many combination options of the individual components.

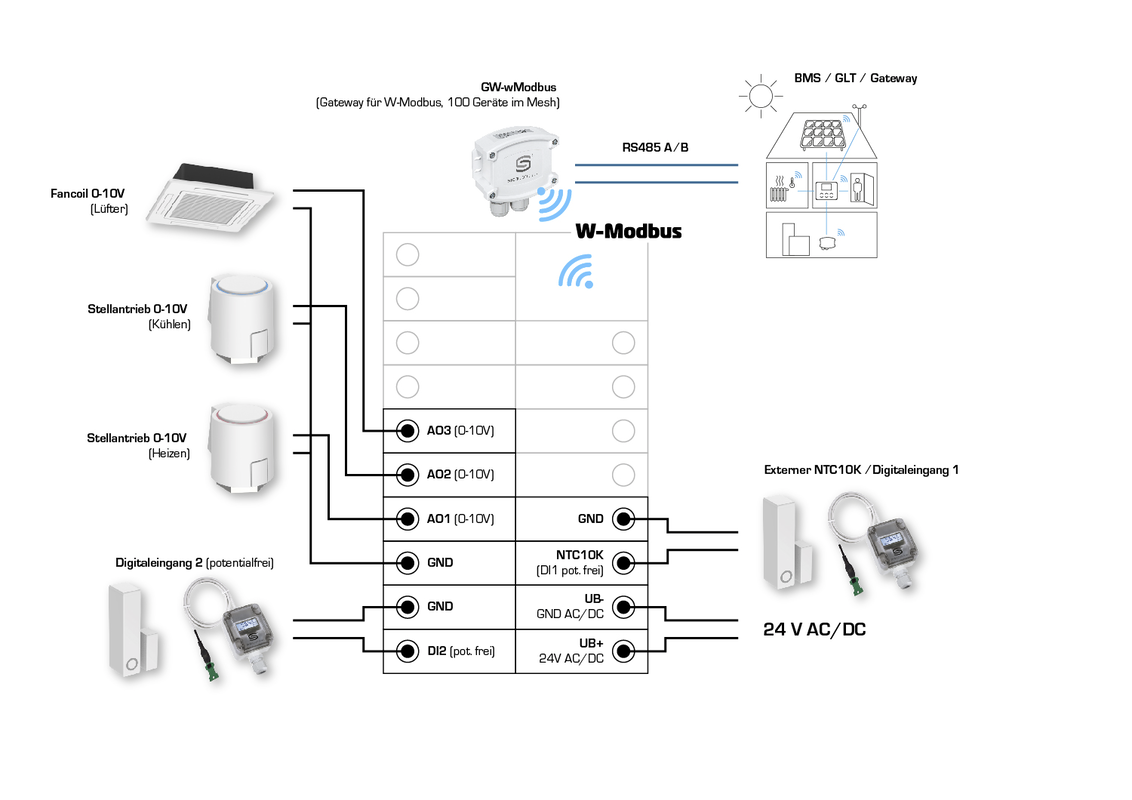

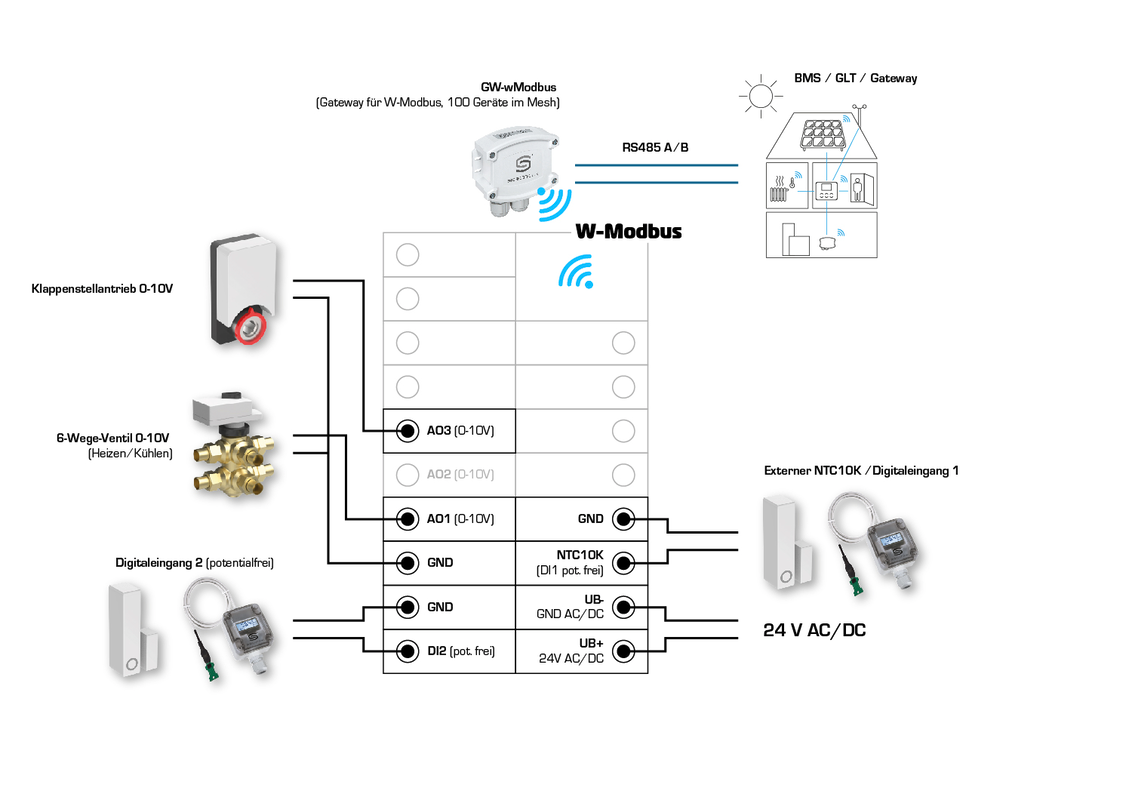

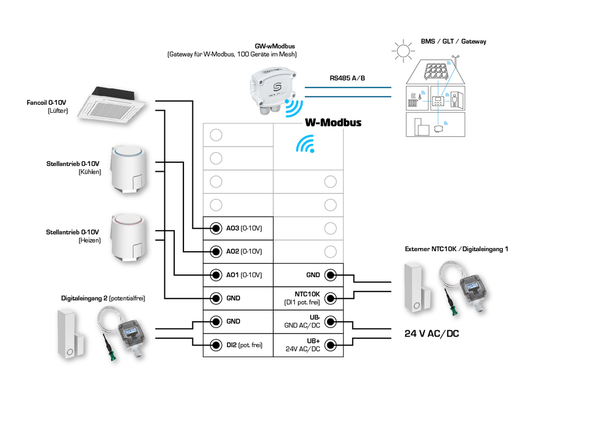

The room control devices Rymaskon® 1000 C (controller) are used to actuate and control heating fan coils and chilled water fan coils (fancoil). Depending on the type variant, the devices are available with analog outputs (0 -10 V) and with digital / relay outputs, for controlling heating valves, cooling valves, 6-way valves, staged louver dampers or EC louver dampers. The actuation is carried out via PI, PWM or 2-/3-point control. With the changeover function, 2-pipe and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables any time-changing and monitoring of the climate parameters on the controller via the BMS. In addition, the functions solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical display is provided via a 2" TFT display, and operation is via capacitive buttons (touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available as options. Furthermore, an input is available for a passive temperature sensor (NTC10K) and an input for a potential-free contact. This allows, for example, a window contact or a condensation monitor to be connected. This means all options are available to flexibly and individually condition rooms.
All device types are available in the timeless housing Iduna 3 (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is done on standard flush-mounting boxes.
