WIRELESS room controller (controller) RYMASKON® RYM 1431C-RH-CO2-WMOD-L

The room control devices of the Rymaskon® 1000 series are designed to control (up to 2 climate zones) living, hotel and office rooms and individually regulate the heating, cooling and fan stages of the interior space. Depending on the controller variant, the controller can be operated as a stand-alone unit using the integrated control functions PI, PWM or 2-/3-point control. The product family is distinguished by its elegant design, intuitive operation and the wide range of combination options of the individual components.

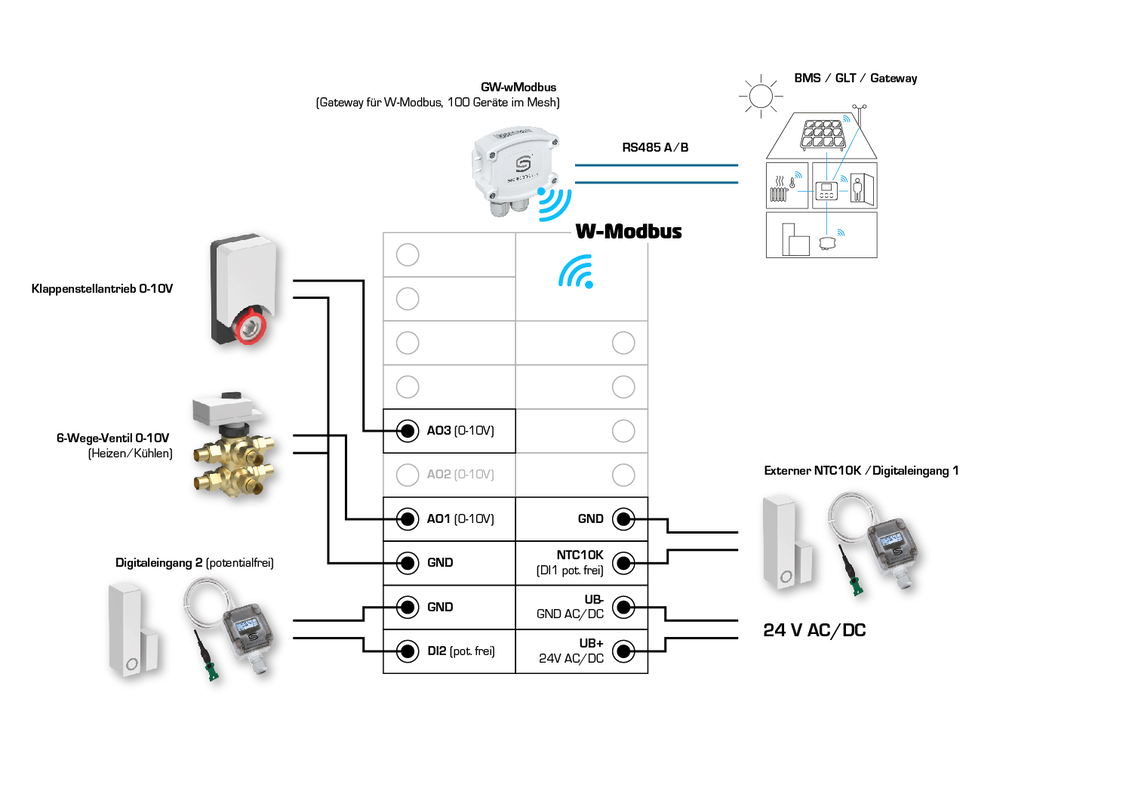

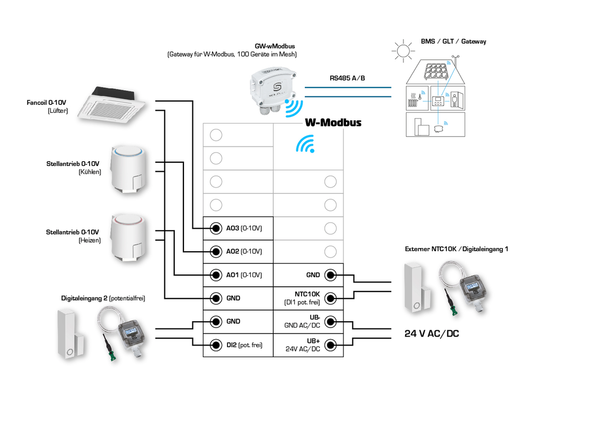

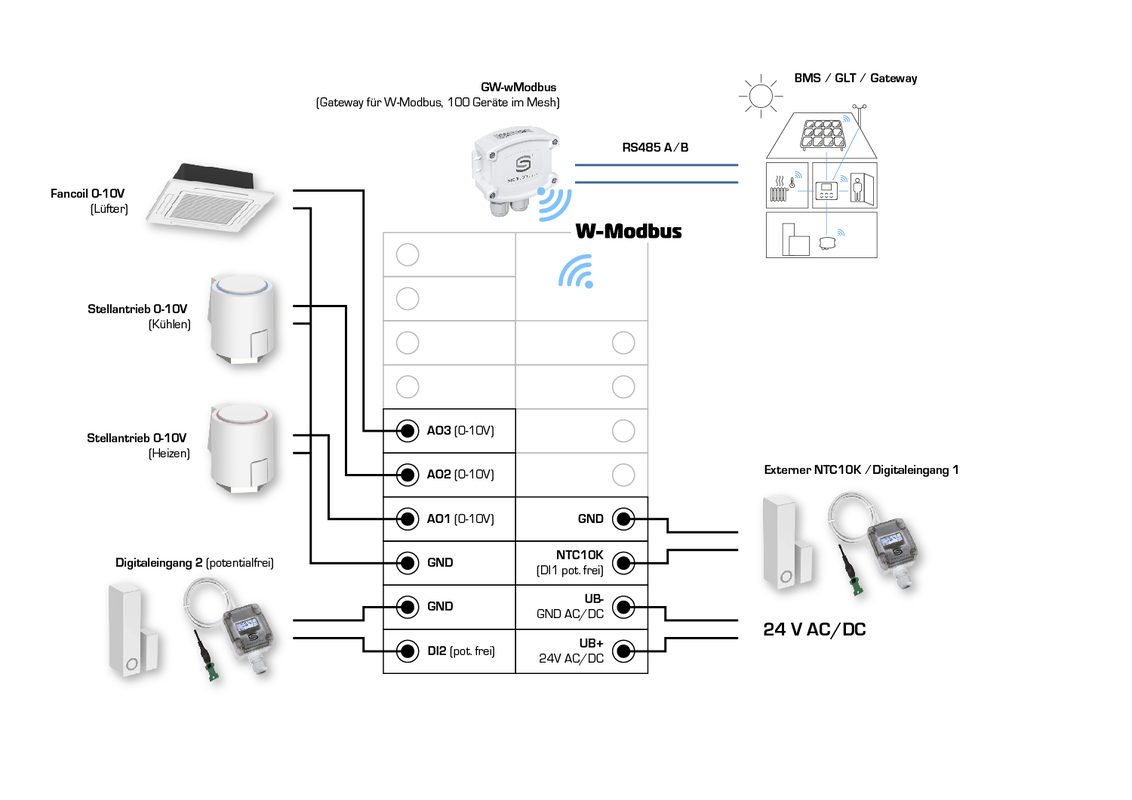

The room control devices Rymaskon® 1000 C (controller) are used for control and regulation of heating fan convectors and cooling fan convectors (fan-coil). Depending on the type variant, the units are available with analog outputs (0 -10 V) and with digital / relay outputs for controlling heating valves, cooling valves, 6-way valves, stepped fans or EC fans. The control is performed via PI, PWM or 2-/3-point control. With the changeover function, 2- and 4-pipe systems can be operated.

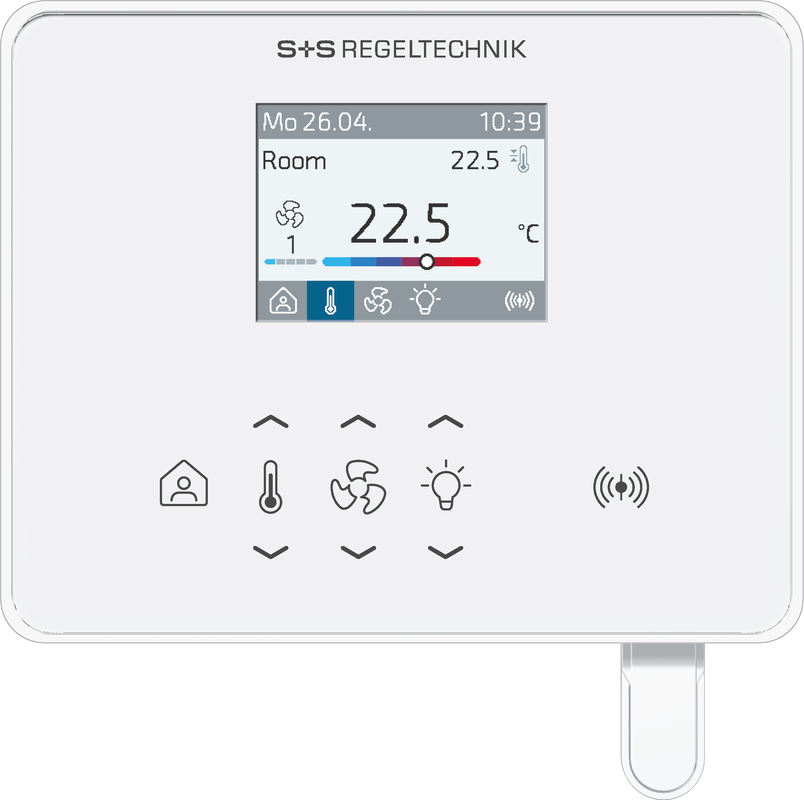

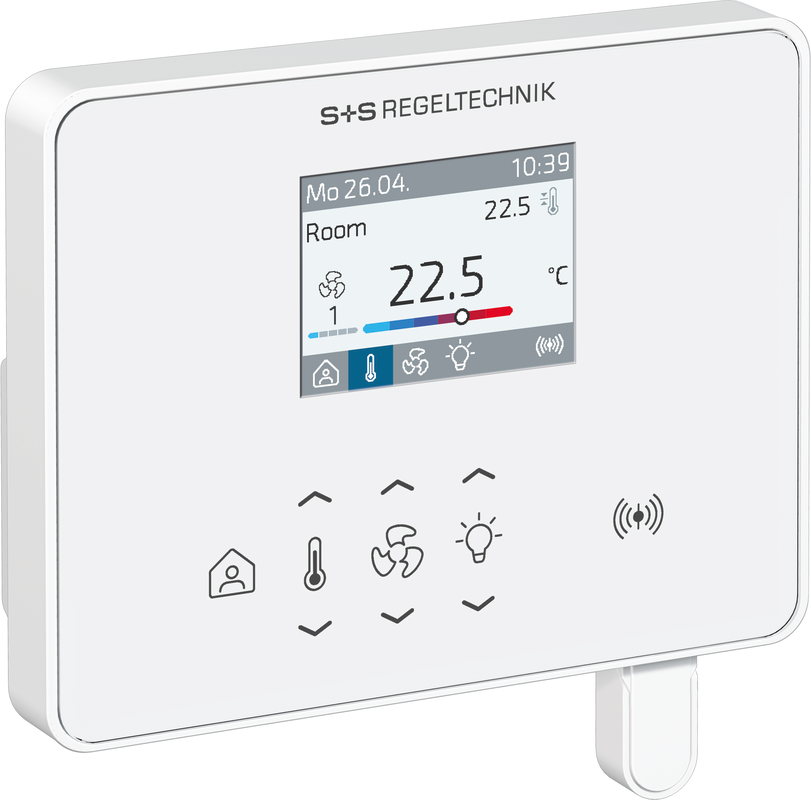

The Modbus communication interface or W-Modbus enables the climate parameters on the controller to be changed and monitored at any time via the BMS. In addition, the functions of solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled over the bus. The optical display is provided via a 2" TFT display, and operation is via capacitive keys (touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available as options. Furthermore, an input is available for a passive temperature sensor (NTC10K), and an input for a potential-free contact. For example, a window contact or a condensate monitor can be connected. This means all options are available to climate-control rooms flexibly and individually.

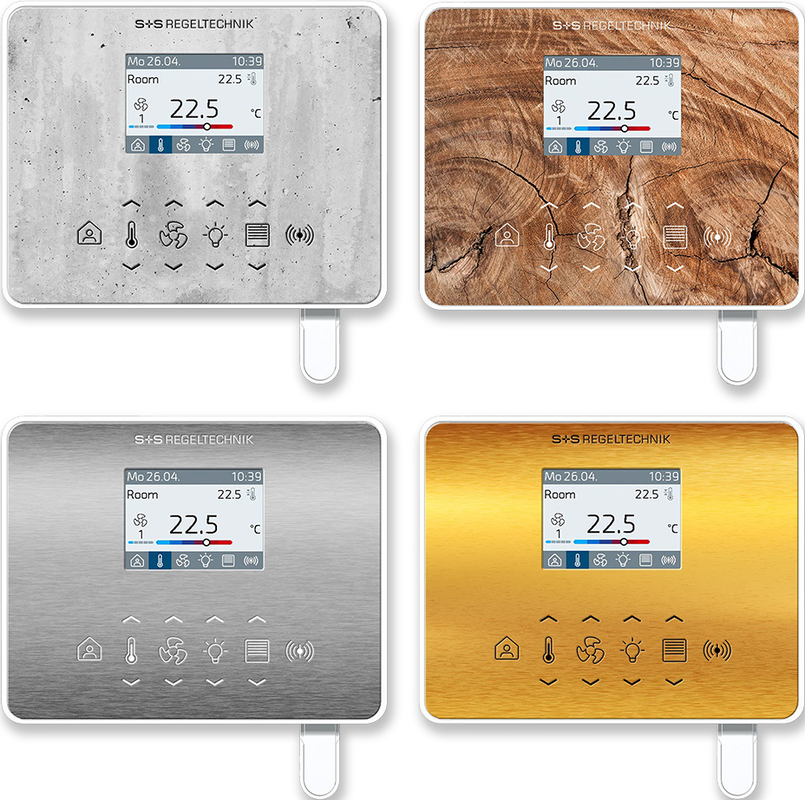

All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in white or black. Wall mounting is performed on standard flush-mounting boxes.
