Room controllers (controllers) RYMASKON® RYM 1362C-RH-VOC-MOD-B

The room controllers of the Rymaskon® 1000 series are designed to control (up to 2 HVAC zones) in residential, hotel and office rooms, and individually regulate the heating, cooling and fan stages of the interior space. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM or 2-/3-position control. The product family is distinguished by its refined design, intuitive operation and the many combination options of the individual components.
The room controllers Rymaskon® 1000 C (controller) are used to actuate and control heating fan convectors and blow-through fan convectors (fancoil). Depending on the type variant, the devices are available with analogue outputs (0 -10 V) as well as with digital / relay outputs for actuating heating valves, cooling valves, 6-way valves, stepped louvers or EC louvers. Actuation is performed via PI, PWM or 2-/3-position control. With the changeover function, 2- and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables the control and monitoring of HVAC parameters on the controller at any time via the BMS. In addition, the functions for solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical display is provided via a 2" TFT display, and operation via capacitive buttons (touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available optionally. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This makes it possible, for example, to connect a window contact or a condensation guard. This ensures that all options are available to flexibly and individually condition the rooms.

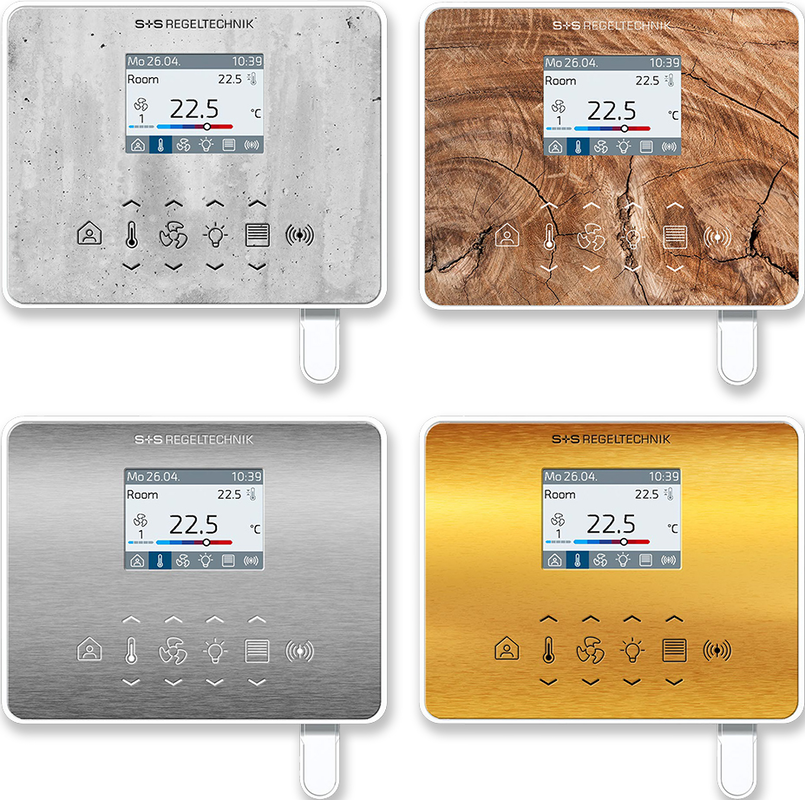

All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in white or black. Wall mounting is carried out on standard flush-mounting boxes.
