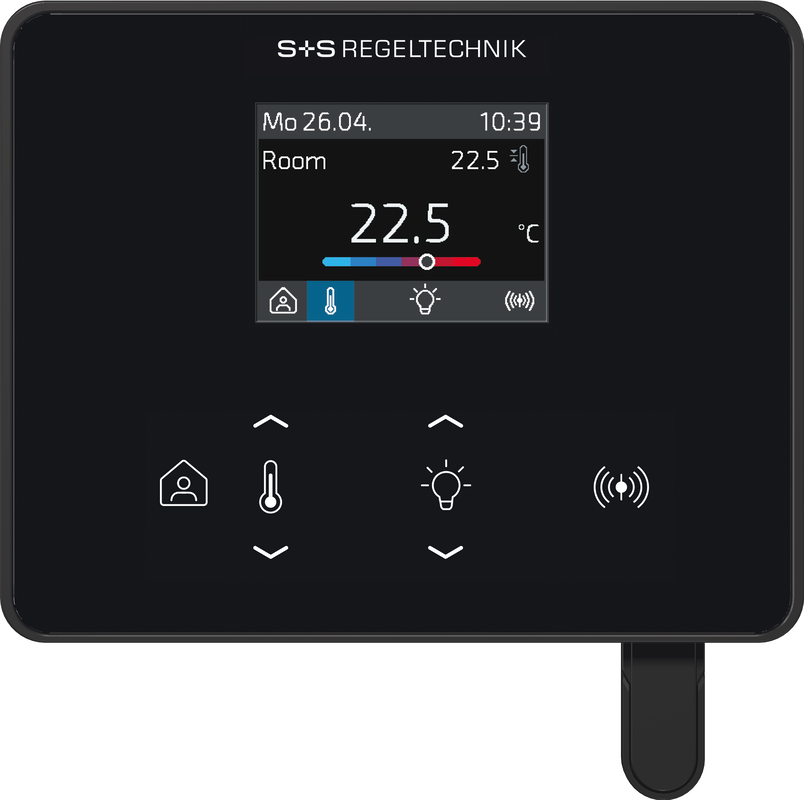

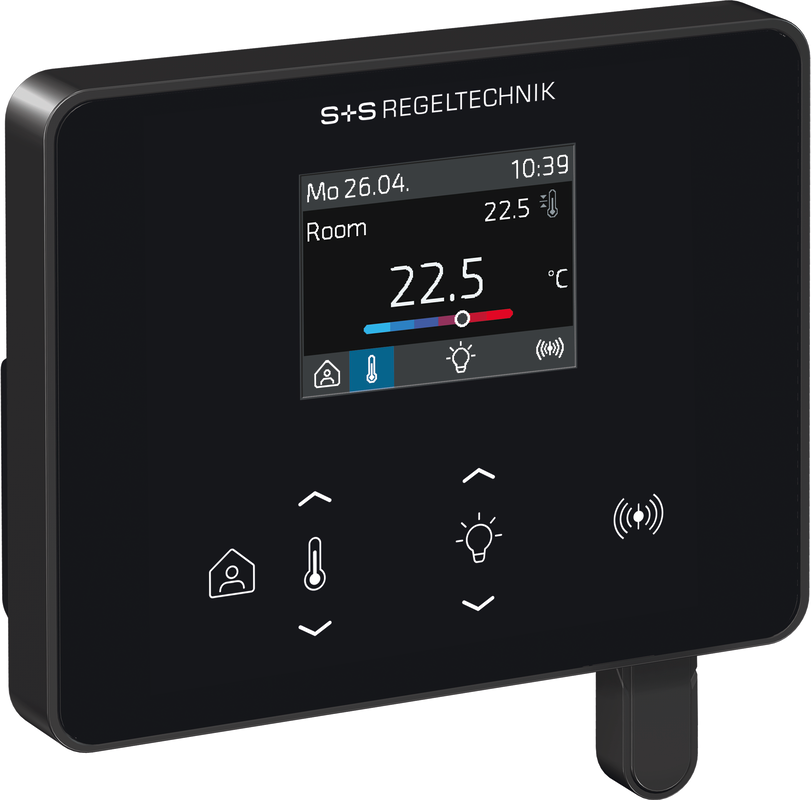

Room controllers (Controller) RYMASKON® RYM 1322C-RH-CO2-VOC-MOD-L

The room controller devices of the Rymaskon® 1000 series are designed to control (up to 2 heating/cooling zones) in residential, hotel, and office rooms and individually regulate the indoor heating, cooling, and fan stages. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM, or 2-/3-point control. The product family is characterized by an elegant design, intuitive operation, and the many combination options of the individual components.

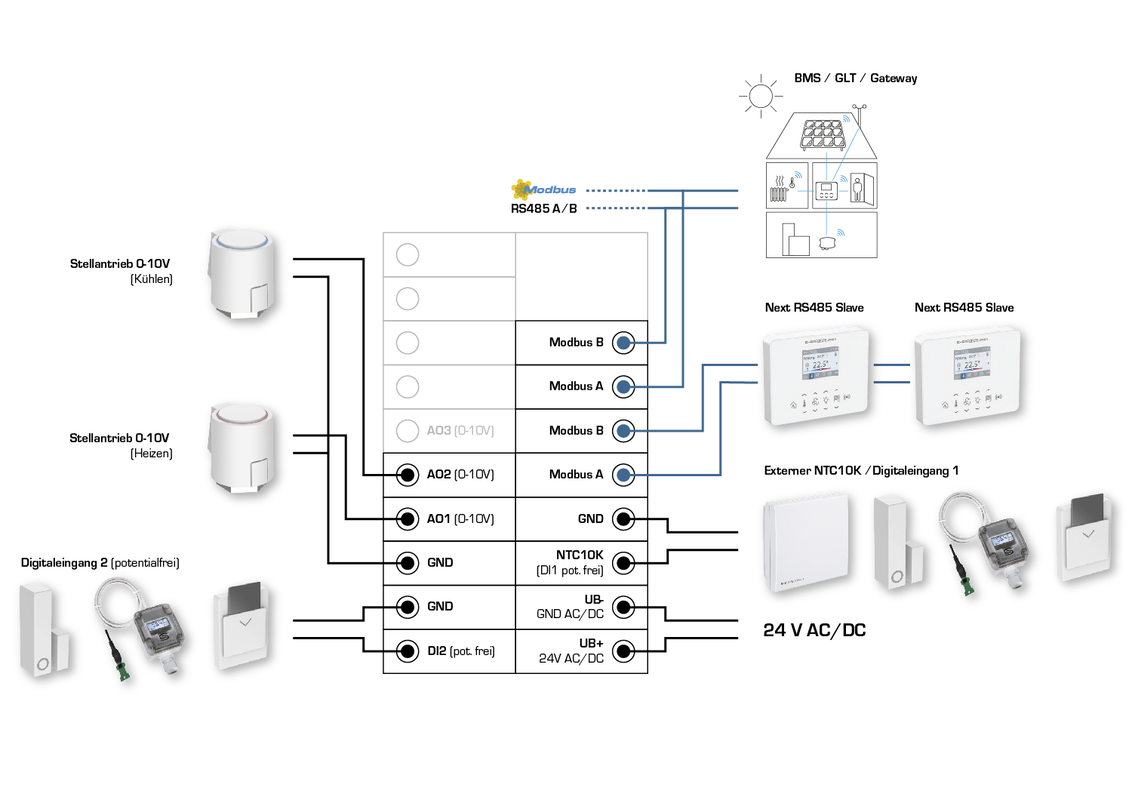

The room controller devices Rymaskon® 1000 C (controller) are used for controlling and regulating heating fan convectors and fan convectors (fan-coil). Depending on the type variant, the units are available with analog outputs (0 -10 V) as well as with digital/relay outputs for controlling heating valves, cooling valves, 6-way valves, step-controlled fans, or EC fans. Control is carried out via PI, PWM, or 2-/3-point control. With the changeover function, 2- and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables the control and monitoring of climate parameters on the controller at any time via the BMS. In addition, the functions solar shading (roll-down shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical display is provided via a 2" TFT display, and operation is via capacitive buttons (touchkeys).

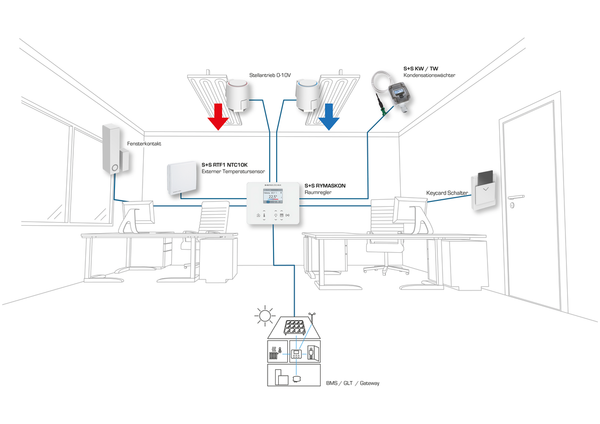

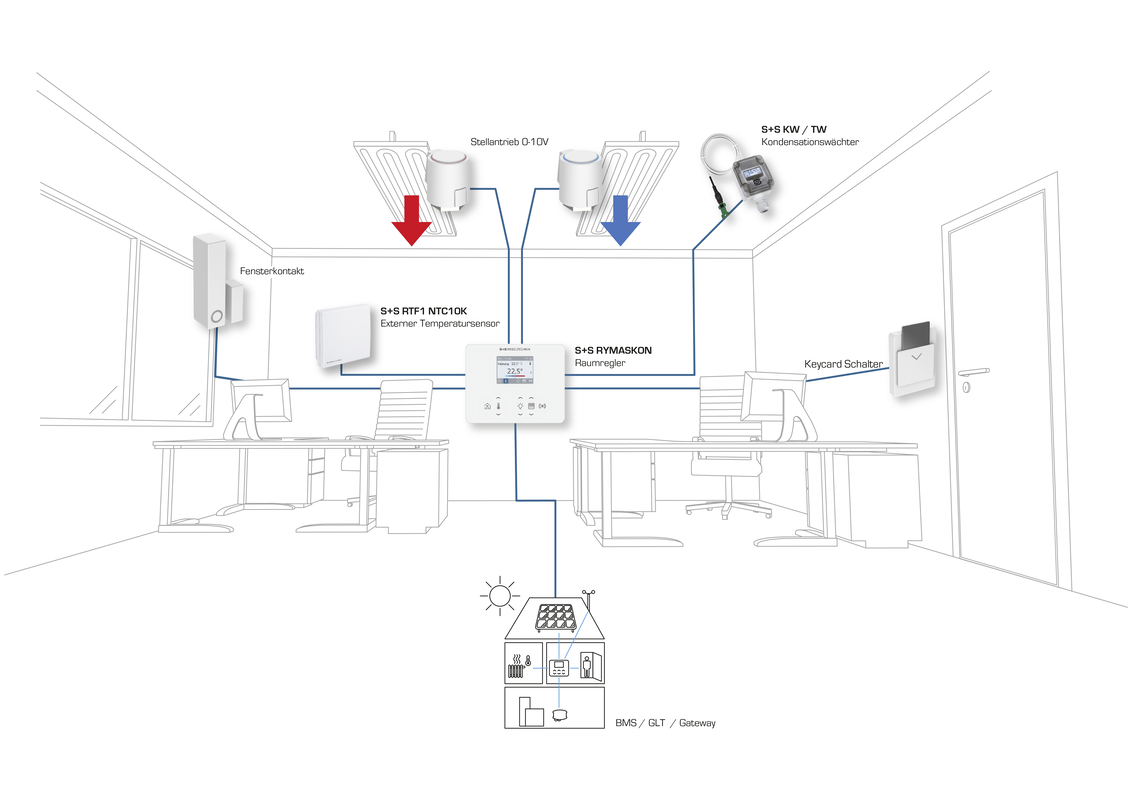

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are optionally available. Furthermore, an input is provided for a passive temperature sensor (NTC10K) and an input for a potential-free contact. This allows, for example, a window contact or a condensation detector to be connected. As a result, all options are available to flexibly and individually condition rooms.
All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in the colors white or black. The wall mounting is done on standard flush-mounting boxes.
