WIRELESS room controller (controller) RYMASKON® RYM 1312C-RH-VOC-WMOD

The room control devices of the Rymaskon® 1000 series are designed to control (up to 2 climate zones) in residential, hotel and office rooms and individually control the heating, cooling and fan stages of the interior. The controller variants can be operated as stand-alone devices via the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by elegant design, intuitive operation and the many possible combinations of the individual components.
The room control devices Rymaskon® 1000 C (controller) are used for control and regulation of heating fan convectors and blower fan convectors (fan coil). Depending on the type variant, the devices are available with analog outputs (0 -10 V) as well as with digital / relay outputs for controlling heating valves, cooling valves, 6-way valves, staged fans or EC fans. The control is carried out via PI, PWM or 2-/3-point control. With the changeover function, 2- and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables the control and monitoring of climate parameters on the controller at any time via the BMS. In addition, the functions solar shading (roller shutters, louver blinds) or lighting (with dimming function) can be controlled via the bus. The optical indication is provided via a 2" TFT display; operation is via capacitive keys (touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available optionally. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This makes it possible, for example, to connect a window contact or a condensation monitor. This provides all options to flexibly and individually climate-control the rooms.

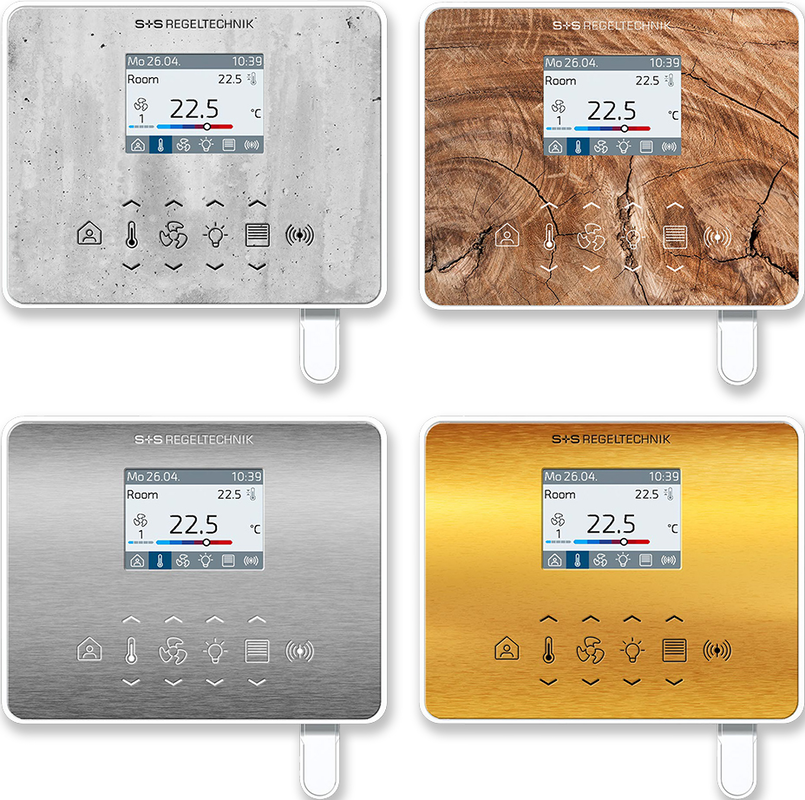

All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in white or black. Wall mounting is on standard flush-mounting boxes.
