Luftstromwächter mit Display und Messsonde
Luftstromwächter in Frontalansicht mit Display

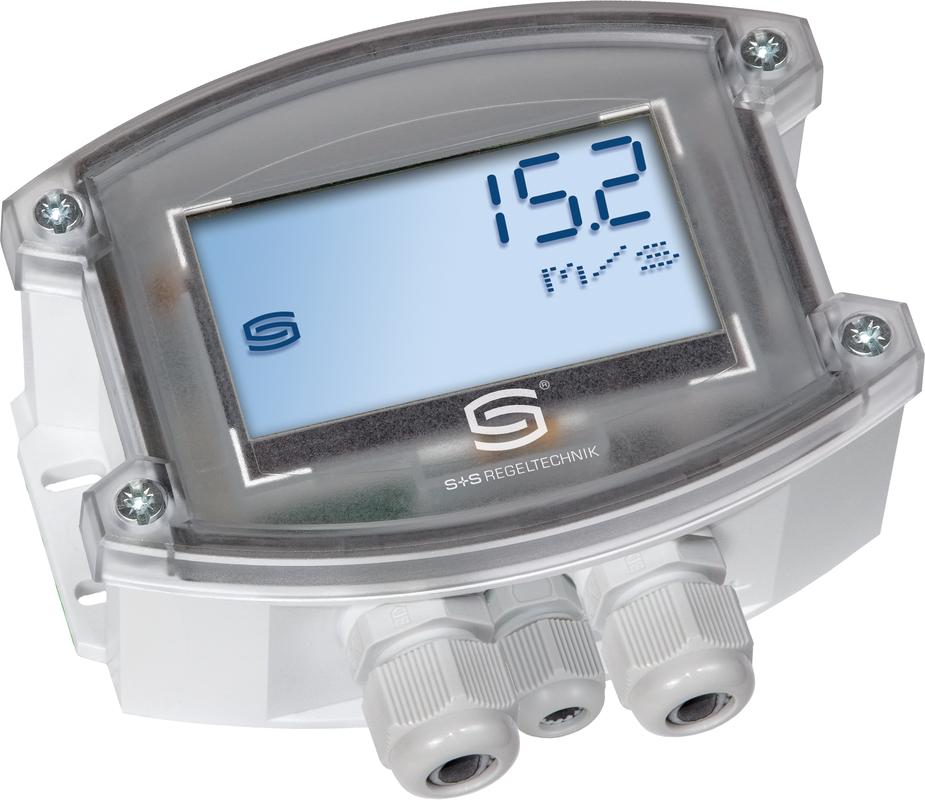

Airflow detectors RHEASGARD® PLGF-Modbus LCD

SKU 1701-6216-1101-000 Product group: WG01
In stock , available in 1-3 working days
plus 19% VAT., plus. shipping
incl. VAT 464,68 €
Shipping calculated at checkout.
390,58 €
390,58 €

Auf die Merkliste

Add to wishlist

Añadir a la lista de favoritos

Aggiungi alla lista dei preferiti

Добавить в список желаний

Ajouter à la liste de souhaits

Product description

  • 0.1...20 m/s
  • Flow velocity
  • Modbus RTU
  • Power supply: 24 V AC / DC
  • Mounting dimensions: 155 mm
  • IP65
Calibratable pendulum airflow sensor RHEASGARD® PLGF - Modbus with Modbus connection, housing made of impact-resistant plastic with quick-locking screws, with cable gland (optional M12 plug connector to DIN EN 61076-2-101), optionally with / without display, with external duct probe incl. mounting flange, for recording the flow velocity (0.1...20 m/s).

Calibratable pendulum airflow sensor RHEASGARD® PLGFV - Modbus with Modbus connection, housing made of impact-resistant plastic with quick-locking screws, with cable gland (optional M12 plug connector to DIN EN 61076-2-101), optionally with / without display, with external duct probe incl. mounting flange, for recording the flow velocity (0.1...20 m/s). The following parameters can be queried via Modbus: Flow velocity and volume flow (calculated) .





The flow sensors are suitable for monitoring or controlling air flows in ducts, on fans, control dampers, for flow-dependent monitoring of humidifiers and electric heating registers in accordance with DIN 57100 Part 420 or for use in conjunction with DDC systems.

Innovative Modbus sensor with galvanically isolated RS485 Modbus interface, switchable bus terminating resistor, DIP switch for setting the bus parameters and bus address in de-energized state, internal LEDs for telegram status display, two separate push-in terminals and large three-line display (illuminated). The sensor is calibrated at the factory.

Technical data

Function type Flow monitoring
Measured values Flow
Power supply 24 V AC/DC (±10%)
Output Modbus RTU
Display Yes
Measuring range 0.1...20 m/s
Output Modbus RTU
Output Modbus RTU
