Product description
- 0...2000 ppm or 0...5000 ppm
- Carbon dioxide (CO2)
- automatically 0 -10 V / 4...20 mA
potential-free changeover contact (24 V / 1 A) - IP 65

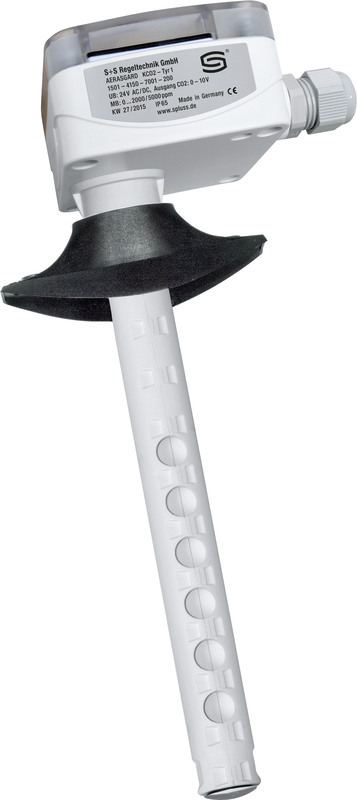

Maintenance-free duct sensor AERASGARD® KCO2-AW with active/switching output, automatic calibration
(can be switched off), in impact-resistant plastic housing with quick-release screws, incl. mounting flange, optionally with/without display, for determining the CO2 content of the air (0..2000 ppm / 0..5000 ppm). Mounting flange, optionally
with/without display, for determining the CO2 content of the air (0...2000 ppm / 0...5000 ppm). The measuring transducer automatically recognizes the required output type (Automatic Output Switching) and converts the measured variables into a standard signal of 0 -10 V or 4...20 mA.
CO2 measurement is carried out using a photoacoustic NDIR sensor (non-dispersive infrared technology). The detection range is calibrated for standard applications such as living room and meeting room monitoring. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
Technical data
| Measurement | CO2 |
| Installation dimensions, metric / mm | 120 mm |
| Display | Yes |
