WS-01
Regular price
35,05 €
Regular price
Sale price
35,05 €
°C + % RH
Product description
- Adjustment range: 25...95% RH (humidity) –35...+35 / –35...+75 / 0...+50 / 0...+80 °C (temperature)
- AOS - automatic 0 -10 V ⁄ 4...20 mA
- Switching capacity (contact load): 2 x changeover contact 24 V, 1A ohmic load, separately adjustable
- Interior setting
- IP65

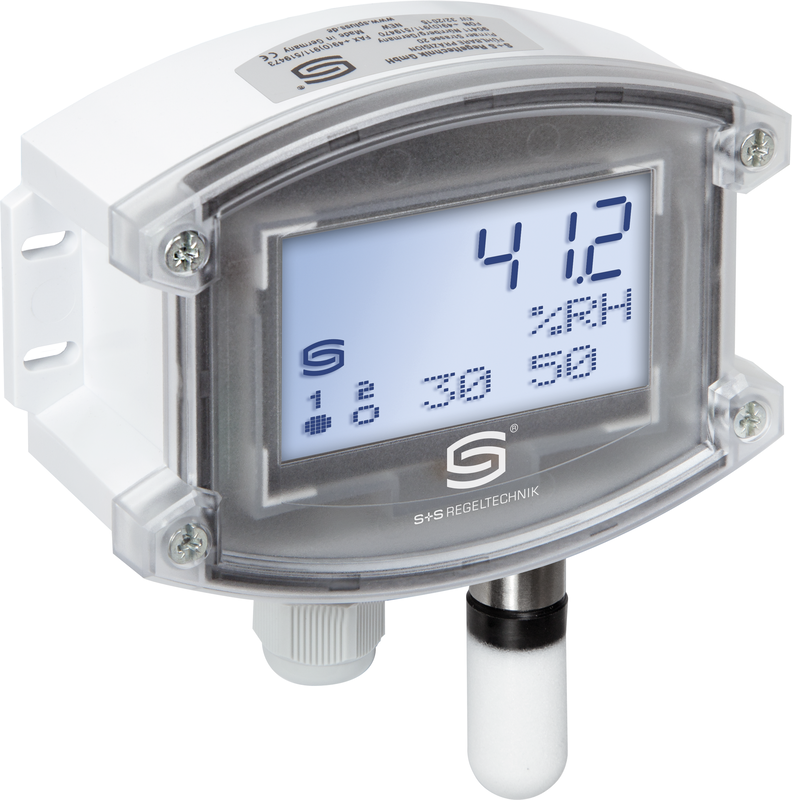

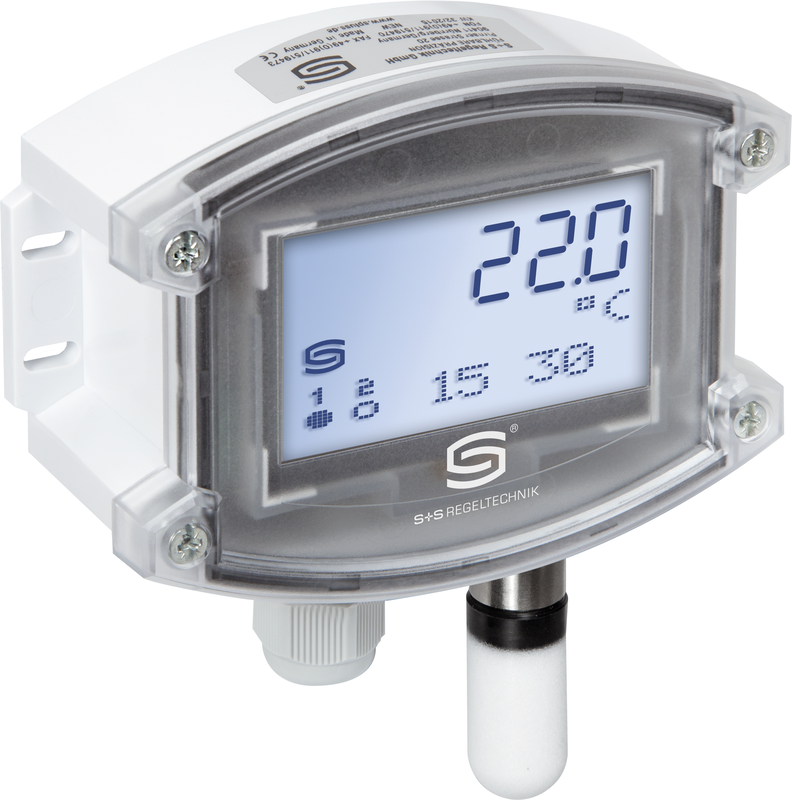

Electronic surface-mounted hygrostat and/or surface-mounted thermostat HYGRASREG® AHT-30 with one continuous and two switching outputs, adjustable switching thresholds and display for indicating the actual humidity and/or actual temperature (accuracy class ± 2.0 % RH). The setpoints can be assigned to the relative humidity and/or temperature.
The device is suitable for controlling and monitoring relative humidity (humidification and dehumidification) and/or temperature (heating and cooling), e.g. in laboratories, production rooms, climatic chambers, swimming pools, greenhouses, etc., for controlling humidification and dehumidification equipment or for heating control. The measuring transducer is designed for the exact recording of humidity/temperature. The AHT30 uses a digital, long-term stable sensor as the measuring element. It is used in dust-free, pollutant-free, non-aggressive air.
The device is suitable for controlling and monitoring relative humidity (humidification and dehumidification) and/or temperature (heating and cooling), e.g. in laboratories, production rooms, climatic chambers, swimming pools, greenhouses, etc., for controlling humidification and dehumidification equipment or for heating control. The measuring transducer is designed for the exact recording of humidity/temperature. The AHT30 uses a digital, long-term stable sensor as the measuring element. It is used in dust-free, pollutant-free, non-aggressive air.
