Modbus | Wireless Modbus

Modern and intelligent building automation and striving for central energy management are calling for a rethink of existing and future communication systems. Instead of elaborate, star -shaped wiring, modern systems such as Modbus and Wireless Modbus enable simple and resource -saving installation, lower effort and additional options.

In view of the rapidly rising energy costs, central recording, monitoring and controlling power consumption is becoming increasingly important in buildings. The networking of our modbus-enabled temperature, moisture, Pressure-as well as VOC, CO2-, fine dust measuring former leads to comprehensive energy efficiency and thus saves money.

°C

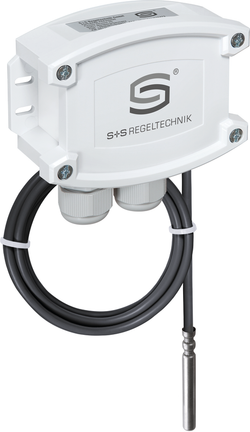

Sleeve sensor with temperature transducer

THERMASGARD® HFTM-Modbus-T3

1101-62A6-0210-000
50...+150 °C
typically ±0.2 K at +25 °C
switchable metric / imperial
Modbus
IP65
194,91 €

plus 19% VAT. + shipping

incl. VAT: 231,77 €
°C

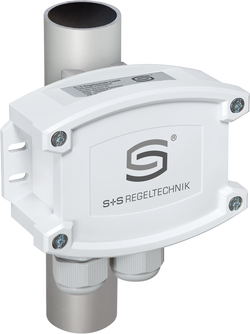

Installation temperature / pipe installation measuring transducer

THERMASGARD® ALTM1-Modbus-T3

1101-12B6-0000-000
–50...+150 °C
typical ± 0.2 K at +25 °C
contact sensor
Modbus RTU
IP65
195,50 €

plus 19% VAT. + shipping

incl. VAT: 232,55 €
Immersion/ screw-in/ duct temperature measuring transducer, calibratable, with Y-adapter, with Modbus connection (not galvanically isolated)

THERMASGARD TM65-Modbus-SD 100mm LCD

1101-728H-2020-000
Measuring range: – 50...+ 150 °C / – 58...+ 302 °F
Inserted Length: 100 mm
Output: Modbus
Protection type: IP 67
199,50 €

plus 19% VAT. + shipping

incl. VAT: 237,31 €
Outside temperature/ wet room temperature measuring transducers, calibratable, with Y-adapter, with Modbus connection (not galvanically isolated) , with display

THERMASGARD ATM 2-Modbus-SD LCD

1101-129H-2000-000
Measuring range: – 50...+ 150 °C / – 58...+ 302 °F
Output: Modbus
Protection type: IP 65
199,59 €

plus 19% VAT. + shipping

incl. VAT: 237,40 €
Immersion/ screw-in/ duct temperature measuring transducer, calibratable, with Y-adapter, with Modbus connection (not galvanically isolated)

THERMASGARD TM65-Modbus-SD 150mm LCD

1101-728H-2030-000
Measuring range: – 50...+ 150 °C / – 58...+ 302 °F
Inserted Length: 150 mm
Output: Modbus
Protection type: IP 67
199,78 €

plus 19% VAT. + shipping

incl. VAT: 237,59 €
Immersion/ screw-in/ duct temperature measuring transducer, calibratable, with Y-adapter, with Modbus connection (not galvanically isolated)

THERMASGARD TM65-Modbus-SD 200mm LCD

1101-728H-2040-000
Measuring range: – 50...+ 150 °C / – 58...+ 302 °F
Inserted Length: 200 mm
Output: Modbus
Protection type: IP 67
200,02 €

plus 19% VAT. + shipping

incl. VAT: 238,02 €
°C

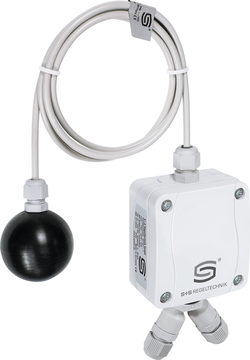

Pendulum room temperature transducer

THERMASGARD® RPTM2-Modbus

1101-1276-0210-000
– 50...+ 150 °C; Tmin –50 °C, Tmax + 80 °C

typically ± 0.2 K at +25 °C

Modbus RTU

IP65
201,10 €

plus 19% VAT. + shipping

incl. VAT: 239,29 €
°C

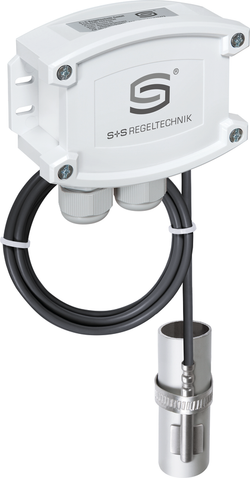

Installation temperature / Pipe installation measuring transducer

THERMASGARD® ALTM2-Modbus-T3
−50...+150 °C
Switchover, metric / imperial
Contact sensor
Modbus
IP65
203,71 €

plus 19% VAT. + shipping

incl. VAT: 242,28 €
Sleeve sensor with temperature measuring transducer, calibratable, with Y-adapter, with Modbus connection (not galvanically isolated) , with display

THERMASGARD HFTM-Modbus-SD LCD

1101-626H-2210-120
Measuring range: – 50...+ 150 °C / – 58...+ 302 °F
Output: Modbus
Protection type: IP 65
204,14 €

plus 19% VAT. + shipping

incl. VAT: 242,90 €
Surface-contact temperature measuring transducer/ pipe surface-contact sensor, incl. strap, compact variant, calibratable, with Y-adapter, with Modbus connection (not galvanically isolated)

THERMASGARD ALTM 1-Modbus-SD LCD
Measuring range: – 50...+ 150 °C / – 58...+ 302 °F
Output: Modbus
Protection type: IP 65
206,09 €

plus 19% VAT. + shipping

incl. VAT: 245,23 €
Dew point control switches, incl. strap/ with detached sensor head (± 2.0 %), for mixture ratio, relative / absolute humidity, dew point, enthalpy and temperature, calibratable, with Y-adapter, with Modbus connection (not galvanically isolated)

HYGRASGARD TW-Modbus-SD

1201-121H-3001-020
0...100 % RH (Humidity) – 35...+80 °C / – 31...+176 °F (Temperature)
Modbus
Protection type: IP 65
210,14 €

plus 19% VAT. + shipping

incl. VAT: 250,04 €
Surface-contact temperature measuring transducer/ pipe surface-contact sensor, incl. strap, with remote sensor, calibratable, with Y-adapter, with Modbus connection ( not galvanically isolated )

THERMASGARD ALTM 2-Modbus-SD LCD
Measuring range: – 50...+ 150 °C / – 58...+ 302 °F
Output: Modbus
Protection type: IP 65
212,66 €

plus 19% VAT. + shipping

incl. VAT: 252,94 €
°C + % RH
Dew point monitor

HYGRASGARD® TW-Modbus-T3

1201-1281-3001-020
–35...+80 °C
0...100 % RH
Temperature [°C], relative humidity [% RH],
dew point [°C], absolute humidity [g / m³],
mixing ratio [g / kg], enthalpy [kJ / kg]
Application sensor
Modbus RTU
IP 65
216,44 €

plus 19% VAT. + shipping

incl. VAT: 257,48 €
°C + % RH
Room operating humidity and temperature sensor

HYGRASGARD® RFTF-Modbus P

1201-42B6-6001-005
0...100 % RH
0...+50 °C

Temperature [°C], relative humidity [% RH],
dew point [°C], absolute humidity [g / m³],
mixing ratio [g / kg], enthalpy [kJ / kg]

Potentiometer

switchable metric / imperial

Modbus

IP30
227,86 €

plus 19% VAT. + shipping

incl. VAT: 270,99 €
Dew point control switches, incl. strap/ with detached sensor head (± 2.0 %), for mixture ratio, relative / absolute humidity, dew point, enthalpy and temperature, calibratable, with Y-adapter, with Modbus connection (not galvanically isolated)

HYGRASGARD TW-Modbus-SD extern

1201-121H-3001-030

229,93 €

plus 19% VAT. + shipping

incl. VAT: 273,44 €
°C + % RH
Room operating humidity and temperature sensor

HYGRASGARD® RFTF-Modbus LCD

1201-42B6-7000-000
0...100 % RH
0...+50 °C

Temperature [°C], relative humidity [% RH],
dew point [°C], absolute humidity [g / m³],
mixing ratio [g / kg], enthalpy [kJ / kg]

Switchable metric / imperial

Modbus

IP30
230,02 €

plus 19% VAT. + shipping

incl. VAT: 273,72 €

We also manufacture individually

Do you have special requirements? As a manufacturer with our own production facilities in Germany, we are also able to produce products outside of the standard range at any time.
