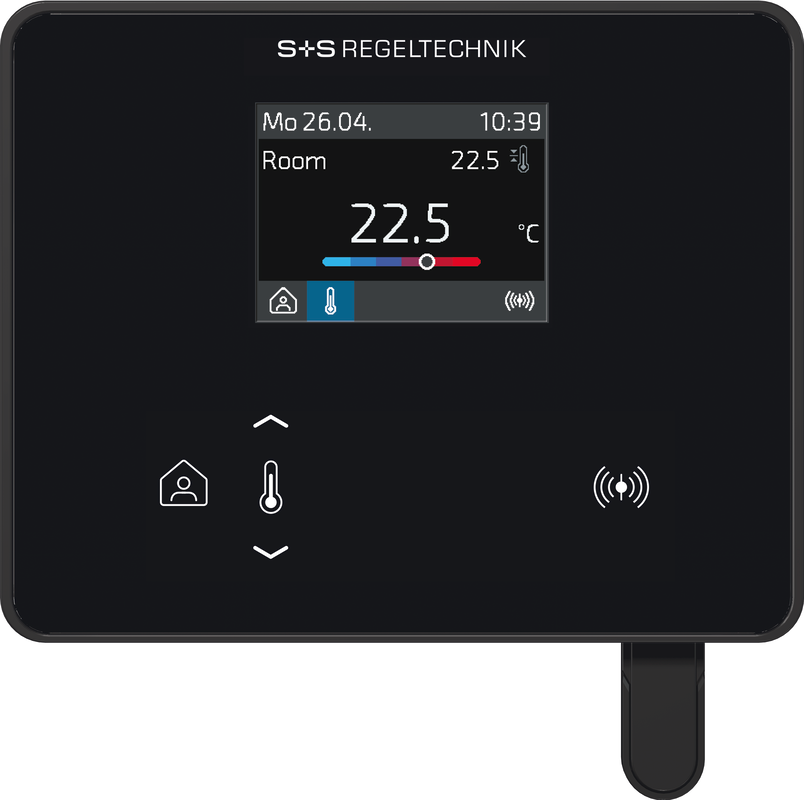

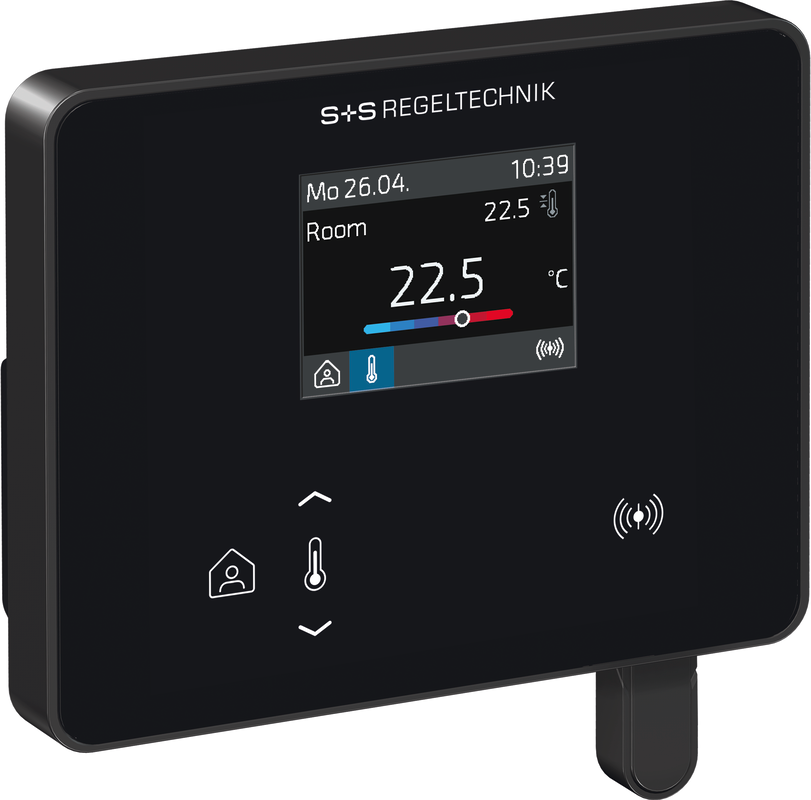

Room operating unit (interface) Rymaskon® RYM 1302-THCV-OTS-M-SM-B

The room control devices of the Rymaskon® 1000 series are designed for controlling residential, hotel, and office rooms and individually regulate the heating, cooling, and ventilation stages of the interior. The product family is distinguished by its elegant design, intuitive operation, and the versatile combination options of the individual components.

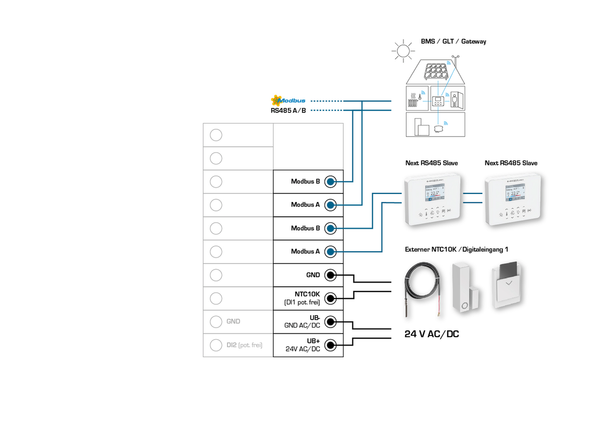

The Rymaskon® 1000 interface room control devices are used to control temperature, ventilation, solar shading (raffstores, roller shutters) or lighting (with dimming function). The room control devices provide setpoints either via conventional wired Modbus or via the wireless, radio-based W-Modbus of the BMS/GLT. Visual indication is provided by a 2" TFT display; operation is via capacitive buttons (touchkeys). Communication is available either wired via Modbus (RTU) / BACnet (MS/TP) or wirelessly/radio-based via W-Modbus (RTU) / W-BACnet (MS/TP).
In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This enables, for example, connection of a window contact or a condensation monitor. As a result, all options are available to flexibly and individually condition rooms.

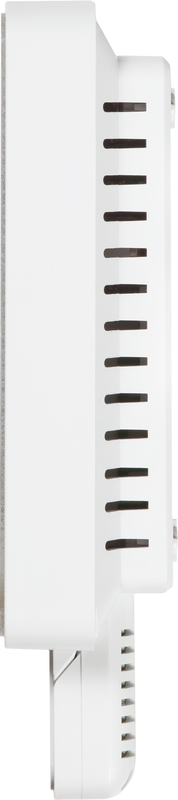

All device types are available in the timeless Iduna 3 enclosure (112 x 89,5 x 24 mm) in the colors white or black. Wall mounting is on standard flush-mount boxes or surface-mount.
