Room operating unit (interface) RYMASKON® RYM 1301-RH-CO2-VOC-MOD-AP

The room operating devices of the series Rymaskon® 1000 are designed to control (up to 2 climate zones) residential, hotel and office rooms and individually regulate the indoor heating, cooling and fan stages. The controller variants can be operated as standalone devices using the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by its elegant design, intuitive operation and the many ways the individual components can be combined.

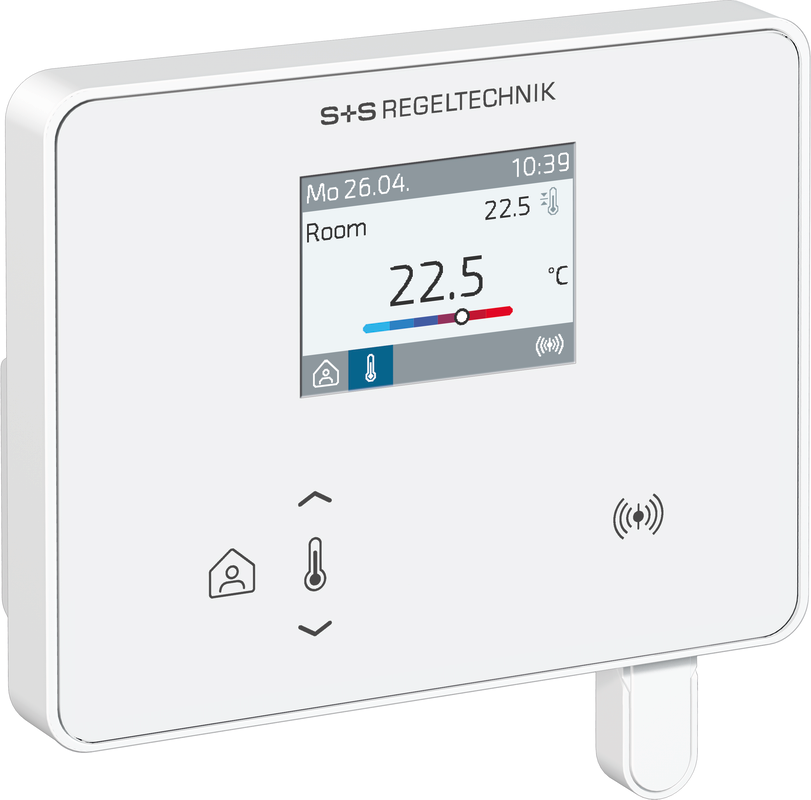

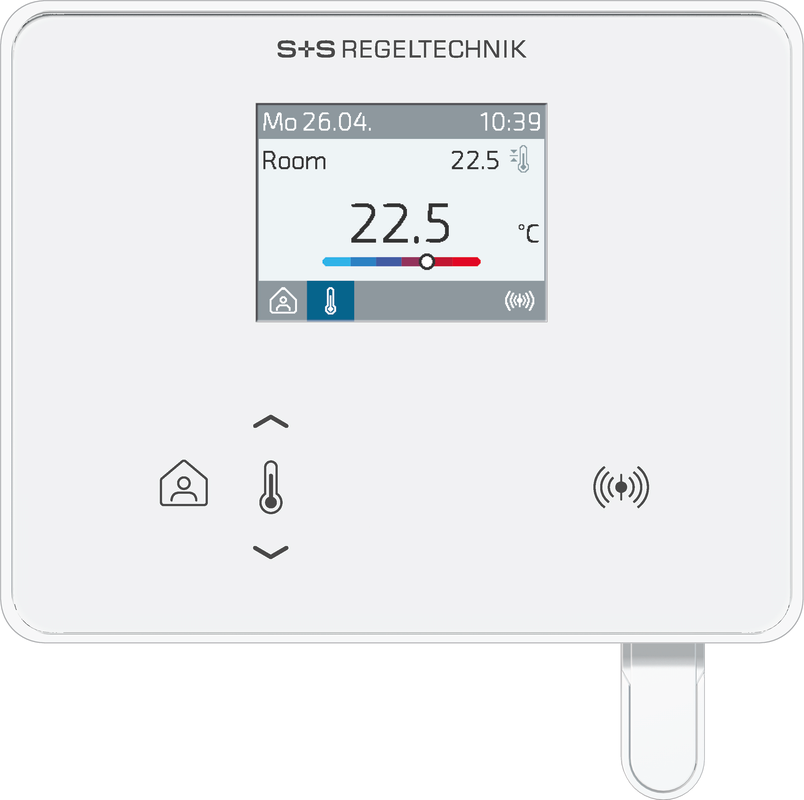

The room operating devices Rymaskon® 1000 (interface) are used to control temperature, fan, solar shading (roller shutters, blinds) or lighting (with dimming function). The room operating devices provide the setpoints either via conventionally wired Modbus or via the wireless, radio-based W-Modbus of the BMS. Visual indication is provided by a 2" TFT display, and operation is via capacitive keys (touchkeys).
In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This enables, for example, a window contact or a condensation monitor to be connected. This means all options are available to flexibly and individually condition the rooms.

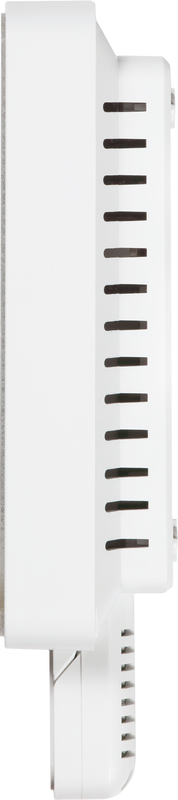

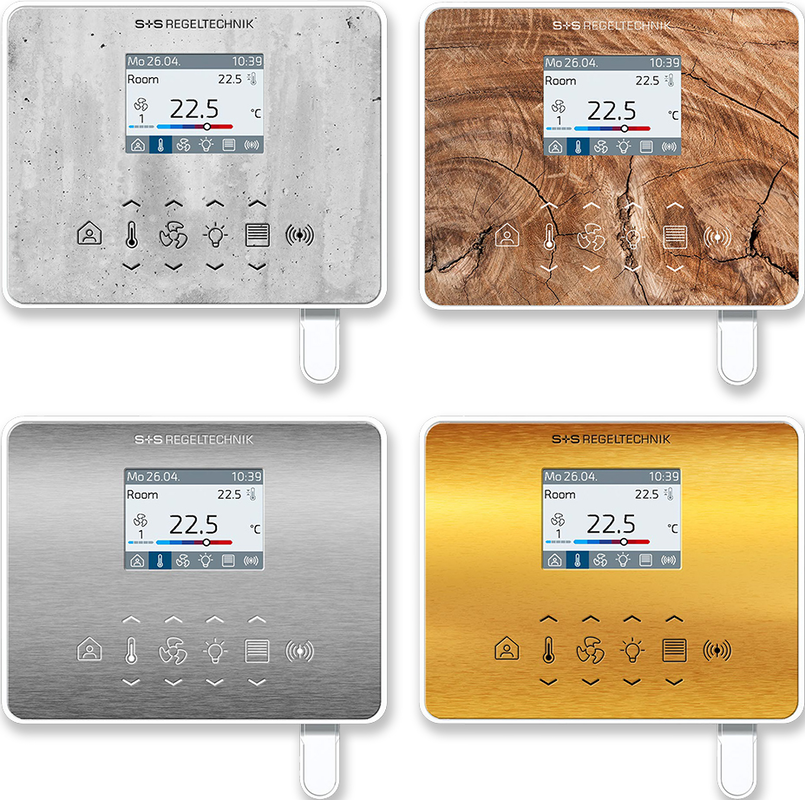

All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is on standard flush-mount boxes or surface-mount.
