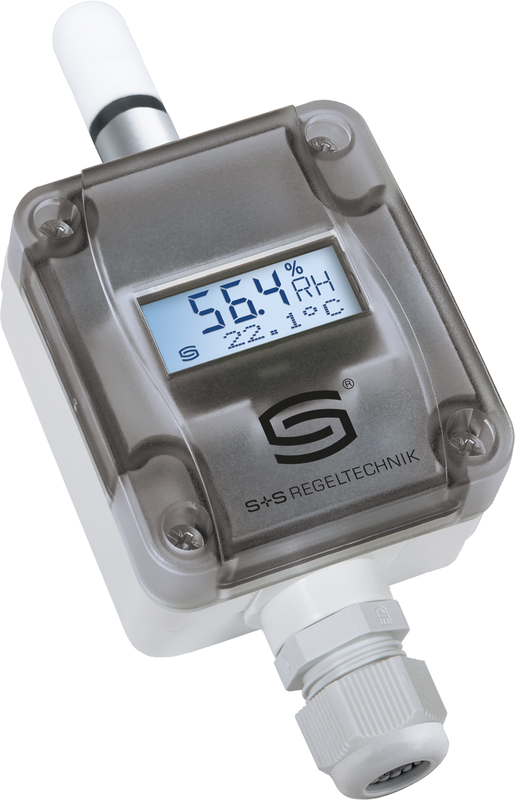

Surface-mount humidity and temperature sensors HYGRASGARD® AFTF-SD-I LCD

SKU 1201-1122-1200-100 EAN 4 251325 610030 Product group: WG01
In stock , available in 1-3 working days
plus 19% VAT., plus. shipping
incl. VAT 309,05 €
Shipping calculated at checkout.
259,84 €
259,84 €

Auf die Merkliste

Add to wishlist

Añadir a la lista de favoritos

Aggiungi alla lista dei preferiti

Добавить в список желаний

Ajouter à la liste de souhaits

Product description

  • –35...+35 / –35...+75 / 0...+50 / 0...+80 °C
    0...100 % RH
  • Measuring accuracy: ± 2 %
  • Temperature [°C], relative humidity [% RH]
  • 4...20 mA
  • IP 65
Quality product for the HVAC sector, accuracy 2 % RH

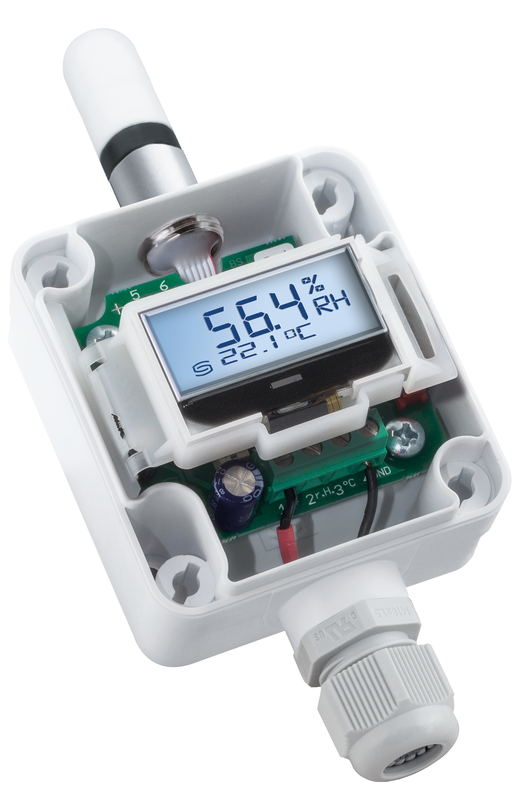

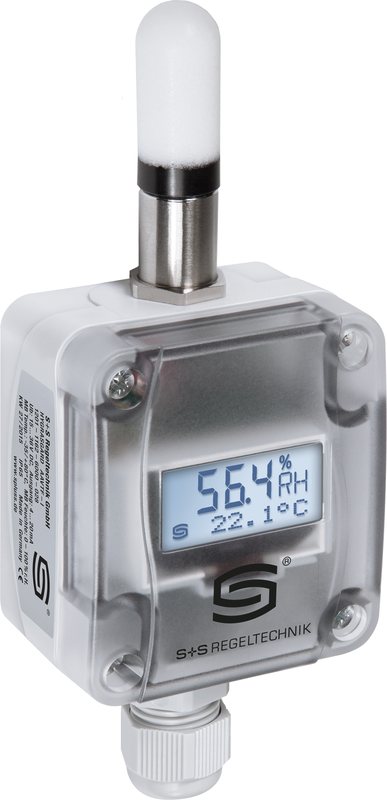

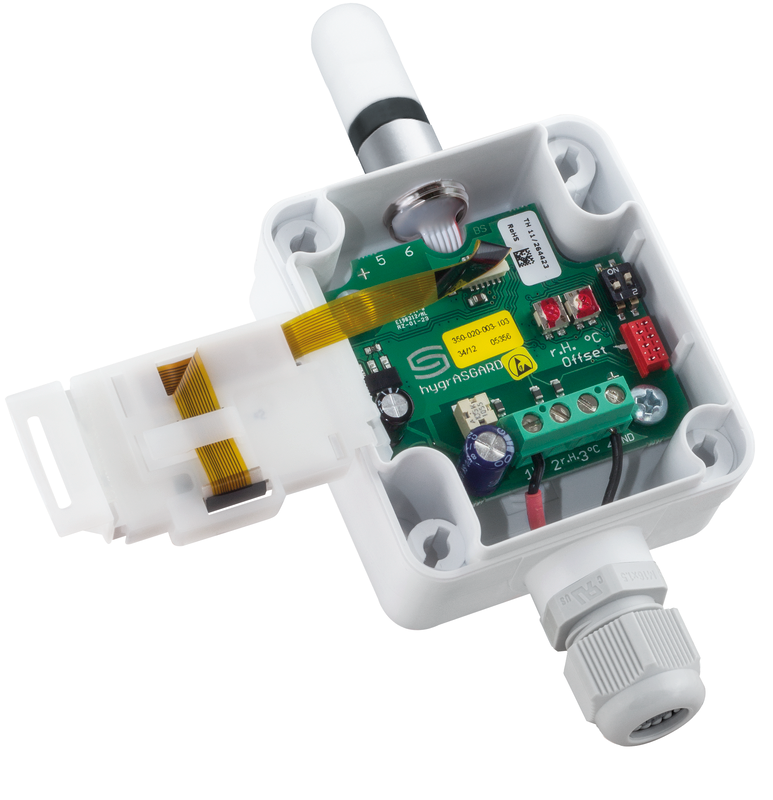

The calibratable outdoor humidity/temperature sensor HYGRASGARD® AFF - SD / AFTF-SD measures the relative humidity and/or temperature of the air. It converts the measured variable into a standard signal of 0-10 V or 4...20 mA, is optionally available with/without display, with terminal box housing made of impact-resistant plastic, housing cover with quick-locking screws.
The measuring transducer has four switchable temperature ranges and is used in non-aggressive, dust-free environments, in refrigeration, air conditioning, ventilation and clean room technology. The relative humidity (in % RH) is the quotient of the water vapor partial pressure and the saturation vapor pressure at the respective gas temperature. The device is designed for the exact measurement of humidity and uses a digital, long-term stable sensor as the measuring element. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.

Technical data

Measurement Temperature, relative humidity
Power supply 15...36 V DC
humidity-dependent, residual ripple stabilized ± 0.3 V
Output 4...20 mA
Display Yes
Measured value in addition to °C + %RH + °C

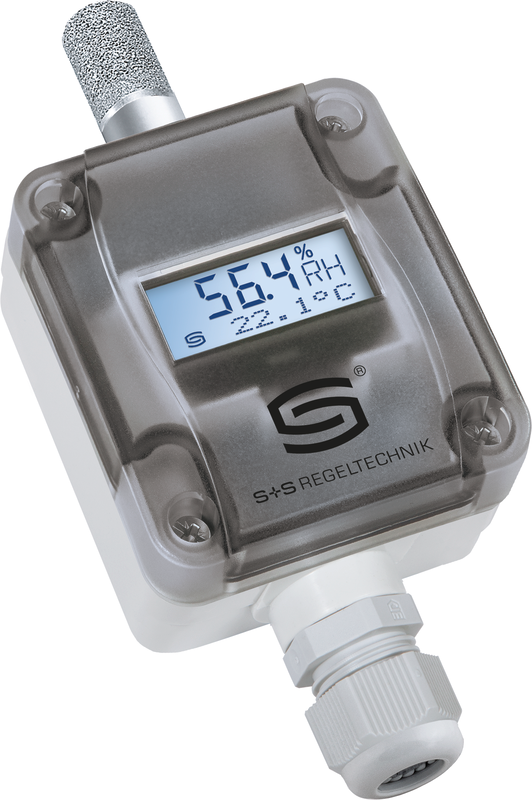

Features Sinter filter, plastic
Output 4...20 mA
Humidity sensor tolerance 2 %
