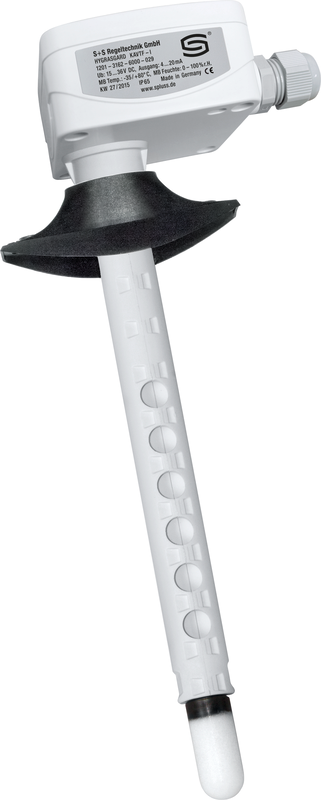

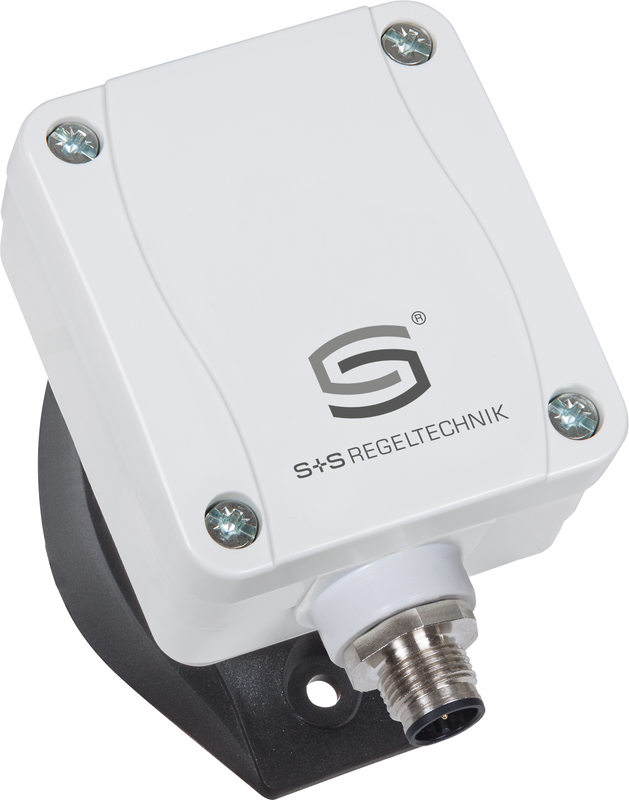

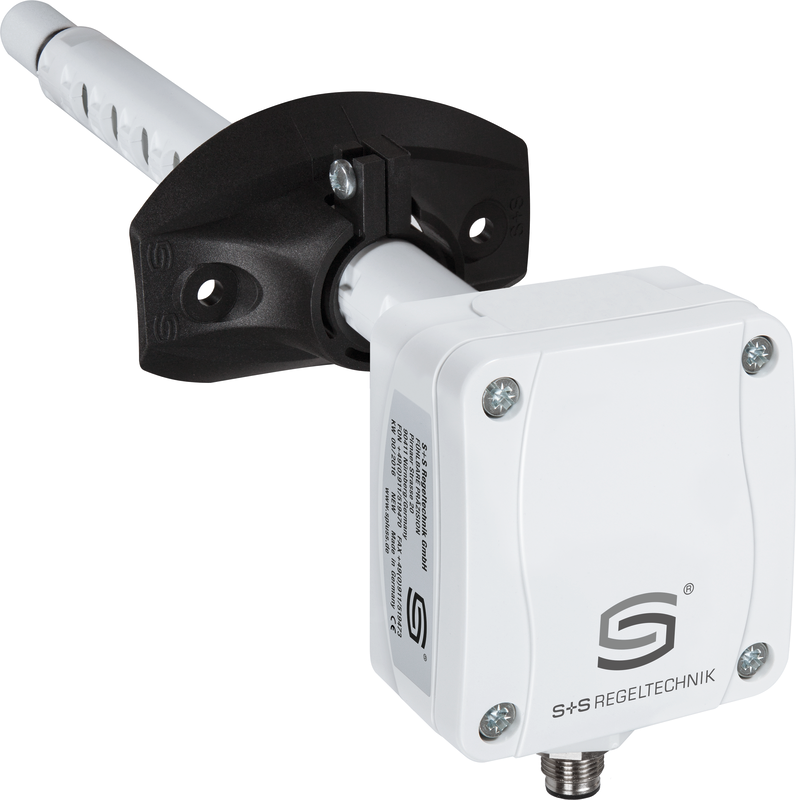

Duct humidity and temperature sensors HYGRASGARD® KFTF-20-U Q

SKU 2003-4151-1100-001 EAN 4 251325 624617 Product group: WG02
In stock , available in 3-5 working days
plus 19% VAT., plus. shipping
incl. VAT 402,68 €
Shipping calculated at checkout.
338,46 €
338,46 €

Auf die Merkliste

Add to wishlist

Añadir a la lista de favoritos

Aggiungi alla lista dei preferiti

Добавить в список желаний

Ajouter à la liste de souhaits

Product description

  • –35...+35 / –35...+75 / 0...+50 / 0...+80 °C
    0...100 % RH
  • Humidity accuracy: ± 1.8 % / Temp.: ± 0.2 K
  • Temperature [°C], relative humidity [% RH]
  • 0 - 10 V

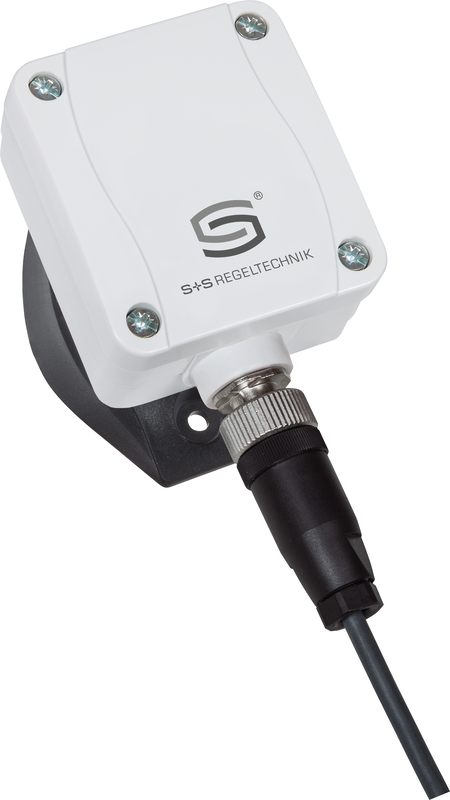

  • M12 plug connector
  • IP 65
Calibratable duct humidity/temperature sensor HYGRASGARD® KFF - SD/KFTF - SD (± 2.0 %), with plastic sintered filter (optional metal sintered filter), impact-resistant plastic housing with snap-on cover, with cable gland (optional M12 plug connector to DIN EN 610762101).

Calibratable duct humidity⁄
temperature sensor HYGRASGARD® KFF/KFTF (± 2.0 %) or KFF - 20 / KFTF - 20 (± 1.8 %), with plastic sintered filter (optional metal sintered filter), impact-resistant plastic housing with quick-release screws, optionally with/without display, with cable gland (optional M12 plug connector to DIN EN 610762101).



The device measures the relative humidity and/or temperature of the air and converts the measured variable into a standard signal of 0 10 V or 4...20 mA. The transmitters have four switchable temperature ranges and are used in non-aggressive, dust-free environments, in refrigeration, air conditioning, ventilation and clean room technology. They are designed for the precise measurement of humidity and work with a digital, long-term stable sensor as the measuring element. The sensors are calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.

Technical data

Measured values Temperature, relative humidity
Power supply 24 V AC (± 20%) and
15 to 36 V DC
Output 0–10V
Display No
Protection class IP65
Output variant M12 plug connector
Measured quantity in addition to °C + %RH + °C
Output 0 - 10 V
Humidity sensor tolerance 1.8%
