Temperature

Our quality products in the area of temperature measurement technology Thermasgard® and Thermasreg® meet the highest demands after precision, innovation and durability. S+S control technology also inspires with sophisticated thermostats, active temperature sensors and passive temperature sensors and many other solutions around the temperature measurement technology.

Your advantage: our holistic understanding of temperature measurement for a wide variety of applications and a high degree of technical experience as a manufacturer of robust and high -quality temperature sensors. If you have any questions about our product range, we are always happy to be there for you.

°C
THERMASREG® ETR-060R85 VA/200

1102-2010-7205-240
Temperature controller (external setting) + safety temperature limiter
1. temperature range: 0...+60 °C2. Temperature range: +65...+85 °C
+32...+140 °F / +149...+185 °F
Tmin ± 5 K; Tmax ± 3 K
Output: Switching / changeover contact
Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
Switching differential: +0 / -15...20K
Water, oil, air and exhaust gases
Material: Stainless steel
Installation length: 200 mm / 8 in
IP65
175,58 €

incl. VAT 208,83 €
°C
THERMASREG® ETR-090R110 VA/200

1102-2010-7205-340
Temperature controller (external setting) + safety temperature limiter
1. temperature range: 0...+90 °C2. Temperature range: +90 ... +110 °C / +32...+194 °F
Tmin ± 5 K; Tmax ± 3 K
Output: Switching / changeover contact
Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
Switching differential: +0 / -15...20K
Water, oil, air and exhaust gases
Material: Stainless steel
Installation length: 200 mm / 8 in
IP65
175,58 €

incl. VAT 208,83 €
°C
THERMASREG® ETR-090090 U VA/200

1102-2010-2205-140
Double temperature monitor (internal setting)
1. temperature range: 0 ... +90 °C2. Temperature range:
Tmin ± 5 K; Tmax ± 3 K
Output: Switching / changeover contact
Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
Switching differential: 3K
Water, oil, air and exhaust gases
Material: Stainless steel
Installation length: 200 mm / 8 in
IP65
175,58 €

incl. VAT 208,83 €
°C
THERMASGARD® MWTM-SD-I 3m

1101-3132-0239-90K
- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
Rod length: 3.0 m
Duct sensor
4...20 mA
IP54
177,04 €

incl. VAT 210,67 €
°C
THERMASGARD® MWTM-SD-U 3m

1101-3131-0239-90K
- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
Rod length: 3.0 m
Duct sensor
0 - 10 V
IP54
177,04 €

incl. VAT 210,67 €
°C
THERMASGARD® ETF7 Ni1000 150mm

1101-2084-2031-000
-35...+150 °C / -31...-302 °F

Temperature

Ni1000

Very fast response time

2-wire connection

IP65
177,21 €

incl. VAT 210,84 €
°C
THERMASGARD® HSM-I

1101-6112-0009-700
Input: Pt100/ Pt1000

Output: 4..20mA

13 adjustable measuring ranges

IP20
177,28 €

incl. VAT 210,91 €
°C
THERMASGARD® HSM-U

1101-6111-0009-700
Input: Pt100/ Pt1000

Output: 0-10V

13 adjustable measuring ranges

IP20
177,28 €

incl. VAT 210,91 €
°C
THERMASGARD® TM54-U 50mm KV

1101-7171-0019-910
- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
typically ± 0.2 K at +25 °C
Installation length: 50 mm / 2 in / 2 in
0 - 10 V
Cable gland
IP65
177,98 €

incl. VAT 211,61 €
°C
THERMASGARD® TM54-I 50mm KV

1101-7172-0019-910
- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
typically ± 0.2 K at +25 °C
Installation length: 50 mm / 2 in / 2 in
4...20 mA
Cable gland
IP65
177,98 €

incl. VAT 211,61 €
°C
THERMASGARD® TM54-I 150mm

1101-7152-0039-910
- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C

typically ± 0.2 K at +25 °C

Installation length: 150 mm

4..20mA

Pressure screw

IP54
179,23 €

incl. VAT 213,24 €
°C
THERMASGARD® TM54-U 150mm

1101-7151-0039-910
- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C

typically ± 0.2 K at +25 °C

Installation length: 150 mm

0-10V

Pressure screw

IP54
179,23 €

incl. VAT 213,24 €
°C

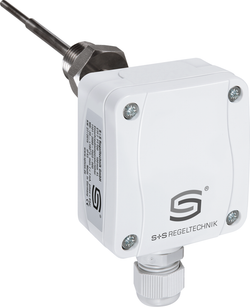

THERMASGARD® ETF7 Ni1000 250mm

1101-2084-2051-000
-35...+150 °C / -31...-302 °F

Temperature

Ni1000

Very fast response time

2-wire connection

IP65
179,43 €

incl. VAT 213,44 €
°C

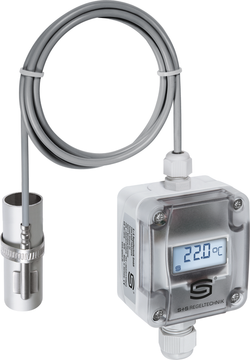

THERMASGARD® ALTM2-I LCD

1101-1122-2219-920
- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
typically ± 0.2 K at +25 °C
4..20mA
Cable gland
IP65
179,80 €

incl. VAT 213,81 €
°C
THERMASGARD® ALTM2-U LCD

1101-1121-2219-920
- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
typically ± 0.2 K at +25 °C
0-10V
Cable gland
IP65
179,80 €

incl. VAT 213,81 €
°C
THERMASGARD® TM54-I 200mm

1101-7152-0049-910
- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C

typically ± 0.2 K at +25 °C

Installation length: 200 mm

4..20mA

Pressure screw

IP54
181,68 €

incl. VAT 216,07 €

We also manufacture individually

Do you have special requirements?As a manufacturer with our own production facilities in Germany, we are always in a position to produce products outside the standard range.
