Temperature

Our quality products in the area of temperature measurement technology Thermasgard® and Thermasreg® meet the highest demands after precision, innovation and durability. S+S control technology also inspires with sophisticated thermostats, active temperature sensors and passive temperature sensors and many other solutions around the temperature measurement technology.

Your advantage: our holistic understanding of temperature measurement for a wide variety of applications and a high degree of technical experience as a manufacturer of robust and high -quality temperature sensors. If you have any questions about our product range, we are always happy to be there for you.

°C

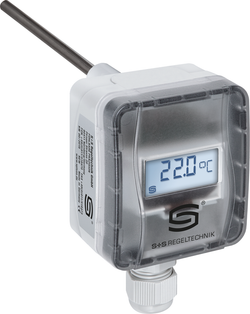

THERMASGARD® TM43-U 250mm LCD

1101-7111-2059-900
Installation length: 250mm / 10 in

- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C

0 - 10 V

IP54
158,08 €

incl. VAT 188,10 €
°C
THERMASGARD® TM43-I 300mm LCD

1101-7112-2069-900
Installation length: 300mm / 12 in

- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C

4...20 mA

IP54
158,60 €

incl. VAT 188,62 €
°C
THERMASGARD® TM43-U 300mm LCD

1101-7111-2069-900
Installation length: 300mm / 12 in

- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C

0 - 10 V

IP54
158,60 €

incl. VAT 188,62 €
°C
THERMASGARD® ETF7 Pt100 150mm

1101-2080-1033-000
-35...+150 °C / -31...-302 °F

Temperature

Pt100

Very fast response time

4-wire connection

IP65
159,01 €

incl. VAT 189,22 €
°C

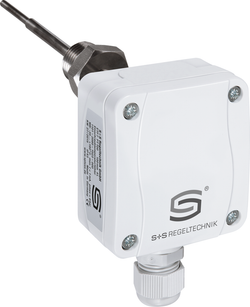

THERMASGARD® ETF7 Pt1000 100mm

1101-2080-5021-000
-35...+150 °C / -31...-302 °F

Temperature

Pt1000

Very fast response time

2-wire connection

IP65
159,15 €

incl. VAT 189,36 €
°C
THERMASGARD® MWTF Pt100 3m

1101-3050-1233-000
-30...+80 °C / -22...-176 °F
Temperature [°C]
PT100
Rod length: 3.0m
4-wire connection
IP65
160,11 €

incl. VAT 190,51 €
°C
THERMASGARD® MWTF Pt1000 3m

1101-3050-5231-000
-30...+80 °C / -22...-176 °F
Temperature [°C]
PT1000
Rod length: 3.0m
2-wire connection
IP65
160,11 €

incl. VAT 190,51 €
°C
THERMASGARD® TM43-I 350mm LCD

1101-7112-2079-900
Installation length: 350mm / 14 in

- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C

4...20 mA

IP54
160,19 €

incl. VAT 190,59 €
°C
THERMASGARD® TM43-U 350mm LCD

1101-7111-2079-900
Installation length: 350mm / 14 in

- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C

0 - 10 V

IP54
160,19 €

incl. VAT 190,59 €
°C
THERMASGARD® ETF7 Pt1000 150mm

1101-2080-5031-000
-35...+150 °C / -31...-302 °F

Temperature

Pt1000

Very fast response time

2-wire connection

IP65
160,19 €

incl. VAT 190,59 €
°C
THERMASREG® ETR-060R85 VA/150

1102-2010-7205-230
Temperature controller (external setting) + safety temperature limiter
1. temperature range: 0...+60 °C2. Temperature range: +65...+85 °C
+32...+140 °F / +149...+185 °F
Tmin ± 5 K; Tmax ± 3 K
Output: Switching / changeover contact
Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
Switching differential: +0 / -15...20K
Water, oil, air and exhaust gases
Material: Stainless steel
Installation length: 150 mm / 6 in
IP65
161,53 €

incl. VAT 192,12 €
°C
THERMASREG® ETR-090R110 VA/150

1102-2010-7205-330
Temperature controller (external setting) + safety temperature limiter
1. temperature range: 0...+90 °C2. Temperature range: +90 ... +110 °C / +32...+194 °F
Tmin ± 5 K; Tmax ± 3 K
Output: Switching / changeover contact
Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
Switching differential: +0 / -15...20K
Water, oil, air and exhaust gases
Material: Stainless steel
Installation length: 150 mm / 6 in
IP65
161,53 €

incl. VAT 192,12 €
°C
THERMASREG® ETR-090090 U VA/150

1102-2010-2205-130
Double temperature monitor (internal setting)
1. temperature range: 0 ... +90 °C2. Temperature range:
Tmin ± 5 K; Tmax ± 3 K
Output: Switching / changeover contact
Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
Switching differential: 3K
Water, oil, air and exhaust gases
Material: Stainless steel
Installation length: 150 mm / 6 in
IP65
161,53 €

incl. VAT 192,12 €
°C
THERMASGARD® HFTM-I Q

2001-2111-2100-001
- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
typically ± 0.2 K at +25 °C
4...20 mA
M12 plug connector
IP65
161,56 €

incl. VAT 192,15 €
°C
THERMASGARD® HFTM-U Q

2001-2111-1100-001
- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
typically ± 0.2 K at +25 °C
0 - 10 V
M12 plug connector
IP65
161,56 €

incl. VAT 192,15 €
°C
THERMASGARD® RTM-U PU

1101-41A1-0004-346
- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C

typically ± 0.2 K at +25 °C

0 - 10 V

Potentiometer (0 - 10 V)

IP30
161,96 €

incl. VAT 192,55 €

We also manufacture individually

Do you have special requirements? As a manufacturer with our own production facilities in Germany, we are also able to produce products outside of the standard range at any time.
